Matrix: HB/fs_680_2

Description: UNSYMMETRIC FACSIMILE CONVERGENCE MATRIX

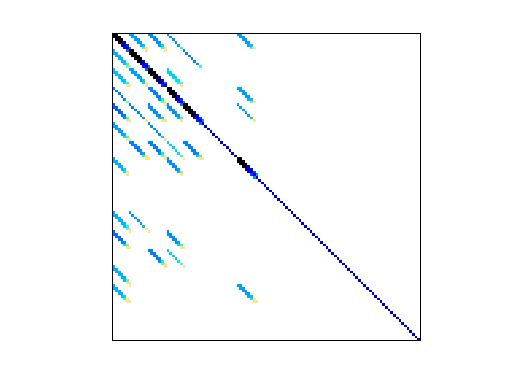

HB/fs_680_2 graph HB/fs_680_2 graph
(bipartite graph drawing) (graph drawing of A+A')

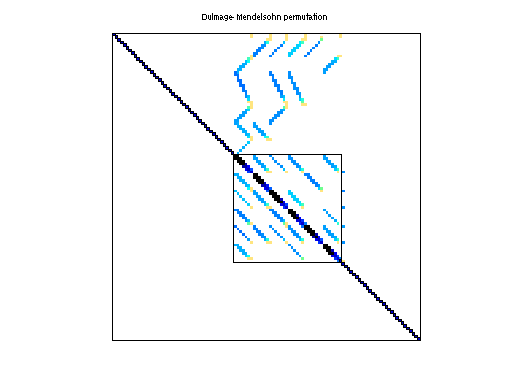

HB/fs_680_2 dmperm of HB/fs_680_2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 19 KB. Use UFget(150) or UFget('HB/fs_680_2') in MATLAB.
  • download in Matrix Market format, file size: 23 KB.
  • download in Rutherford/Boeing format, file size: 22 KB.

    Matrix properties
    number of rows680
    number of columns680
    nonzeros2,424
    structural full rank?yes
    structural rank680
    # of blocks from dmperm446
    # strongly connected comp.446
    explicit zero entries222
    nonzero pattern symmetry 51%
    numeric value symmetry 0%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorA. Curtis
    editorI. Duff, R. Grimes, J. Lewis
    date1983
    kindsubsequent 2D/3D problem
    2D/3D problem?yes

    Notes:

    next: HB/fs_680_3 first: HB/fs_680_1


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD2,620
    Cholesky flop count1.4e+04
    nnz(L+U), no partial pivoting, with AMD4,560
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD2,056
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,971

    Note that all matrix statistics (except nonzero pattern symmetry) exclude the 222 explicit zero entries.

    SVD-based statistics:
    norm(A)7.19085e+13
    min(svd(A))4.899e+08
    cond(A)146782
    rank(A)680
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

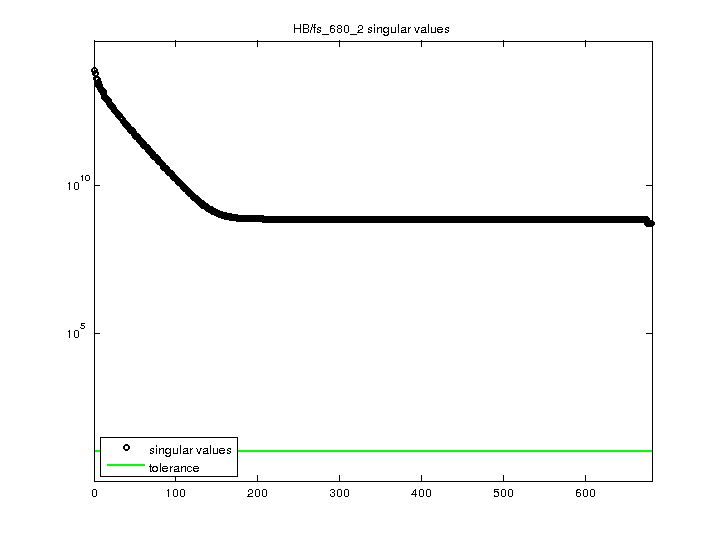

    HB/fs_680_2 svd

    For a description of the statistics displayed above, click here.
