Matrix: HB/can_144

Description: SYMMETRIC PATTERN FROM CANNES,LUCIEN MARRO,JUNE 1981.

HB/can_144 graph
(undirected graph drawing)


HB/can_144

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 2 KB. Use UFget(93) or UFget('HB/can_144') in MATLAB.
  • download in Matrix Market format, file size: 2 KB.
  • download in Rutherford/Boeing format, file size: 2 KB.

    Matrix properties
    number of rows144
    number of columns144
    nonzeros1,296
    structural full rank?yes
    structural rank144
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorL. Marro
    editorI. Duff, R. Grimes, J. Lewis
    date1981
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD935
    Cholesky flop count6.2e+03
    nnz(L+U), no partial pivoting, with AMD1,726
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,175
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,871

    SVD-based statistics:
    norm(A)9.88494
    min(svd(A))9.88056e-18
    cond(A)1.00044e+18
    rank(A)96
    sprank(A)-rank(A)48
    null space dimension48
    full numerical rank?no
    singular value gap1.5294e+14

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

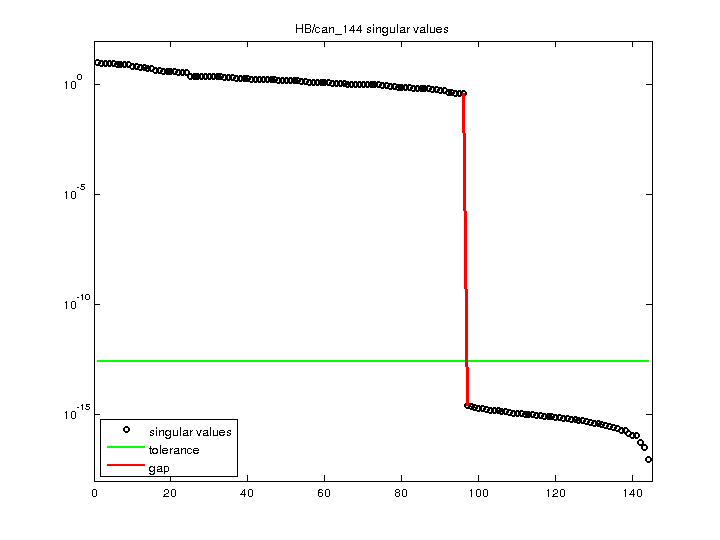

    HB/can_144 svd

    For a description of the statistics displayed above, click here.
