Matrix: HB/bcsstm02

Description: SYMMETRIC MASS MATRIX, SMALL OIL RIG, STATICALLY CONDENSED

HB/bcsstm02 graph
(undirected graph drawing)

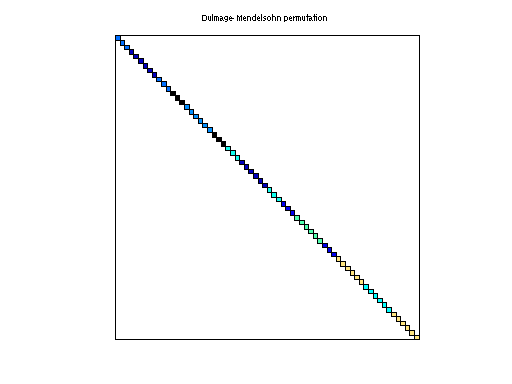

HB/bcsstm02 dmperm of HB/bcsstm02

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: HB
  • Click here for a description of the HB group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 734 bytes. Use UFget(57) or UFget('HB/bcsstm02') in MATLAB.
  • download in Matrix Market format, file size: 796 bytes.
  • download in Rutherford/Boeing format, file size: 799 bytes.

    Matrix properties
    number of rows66
    number of columns66
    nonzeros66
    structural full rank?yes
    structural rank66
    # of blocks from dmperm66
    # strongly connected comp.66
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorJ. Lewis
    editorI. Duff, R. Grimes, J. Lewis
    date1982
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD66
    Cholesky flop count6.6e+01
    nnz(L+U), no partial pivoting, with AMD66
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD66
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD66

    SVD-based statistics:
    norm(A)0.172829
    min(svd(A))0.0197469
    cond(A)8.75217
    rank(A)66
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    HB/bcsstm02 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
