Cryptology - I: Exam 1 - Classical Cryptology + DES

Instructors: R.E. Newman-Wolfe and M.S. Schmalz

Exam 1 covered from the beginning of the class up to and including the discussion of the DES encryption algorithm. Cryptanalysis of DES was not included.

Rules. The following constraints hold for Exam 1:

Open-book but not open notes.
GRAD and UNDERGRAD students: Answer BOTH #3 and #5
GRAD students......................................: Answer ONLY TWO of #2, #4, #6, or #7
UNDERGRAD students ....................: Answer ONLY TWO of #1, #2, #4, #6, or #7
The University's Academic Honesty Policy holds.

Problem 1. Shift Cipher.

Given: Polish cryptography has reportedly declined in sophistication since their "glory days" with the Enigma Machine. They are now reduced to industrial espionage. A man named von Barjinsky has been accused of passing industrial secrets from a major nation to terrorists in the Middle East. You are the agent in charge of the crypto room when the following message comes in, complete with inter-word spaces.

The message is ciphertext generated from English plaintext by mono- alphabetic shift cipher. The numbers (e.g., 600) are unencrypted. You are told that this is a secret message about a crystal lens that is being used to focus dangerous radiation. Your assignment is to decrypt the message using statistics of single-symbols and digrams. Given the clues, this is an easy task if you think about the known structure of the English language, as well as properties of the shift cipher. A few facts from high-school physics might also be helpful.

Ctxt:

The following questions contain keywords to search for:

Ans: Gamma Rays

Method: Construct the following table and look for the encryption of ray (a trigram is usually sufficient):

       Char Maps-to...
       ----+----------------------------------------
        r  | s t u v w x y z a b c d e f g h i j k...
        a  | b c d e f g h i j k l m n o p q r s t...
        y  | z a b c d e f g h i j k l m n o p q r...

ray

BKI

QKWWK

gamma

[1pt] How many small Detectors were used? Ans: 3x3 array = 9 detectors

Method: Find the numbers (e.g., 600, 8, 3H3). Look at the text around them, and decrypt the surrounding ciphertext using the shift deduced above. You find that a 3x3 array of small detectors was used. Since 3x3 = 9, there were nine detectors employed.

[3pt] Now that you have all the important clues, write the first four plaintext sentences.

Ans: A crystal diffraction lens was construct at Argonne National Laboratory for use as a telescope to focus nuclear gamma rays. It consisted of 600 single crystals of germanium arranged in 8 concentric rings. The mounted angle of each crystal was adjusted to intercept and diffract the incoming gamma rays with an accuracy of a few arc sec. The performance of the lens was tested in two ways.

Method: If you don't already know the shift, you can use the brute-force method of trying the 26 possible decryptions of, say, the first ten characters in the message. Recognizable words will appear when the correct shift position is discovered.

Problem 2. Traffic Analysis with Substitution Cipher.

Given: You are a WWII spy assigned to watch the Five Islands area, which consists of Islands A, B, C, D, and E (actual names). You are on Island A and can see Islands B, C, and E. The latter is uninhabited, with a small harbor but no water. You suspect that there is an island (D) over the horizon, since you can see puffs of smoke that spell out Roman letters in Morse Code. There are frequent exchanges of messages between Islands B and C, who occasionally send armed vessels cruising around the waters, but appear not to be conducting warfare. Later that day, you see the following message that appears to be Javanese [a real language] coming from island D, then what looks like a garbled alphabet coming from island B, the one closest to you.

 Ctxt-D: luiyyihaiiyoile  Ctxt-chars (order of use): luiyhaole
 Ctxt-B: aeiouoklmnptyoa  Ctxt-chars (order of use): aeiouklmnpty
 Ptxt-B: WEGOTOISLND_NOW  Ptxt-chars (order of use): WEGOTISLND_N

Wanting to make a good impression your first week on the job, you consult your handy Javanese dictionary and fail to find words that make sense. You guess that the first message must be decrypted, but can't immediately find the key. Instead, you recall your Crypto-I class discussion of traffic analysis and find that Ctxt-B is easily decrypted using a substitution, as shown above, except for one character, which you think may be a vowel. You guess that Ctxt-D has a similar encryption scheme but a simpler ciphertext (ctxt) alphabet, and a different key. You also know that the plain- text used by Island D's chief uses a vowel (an island name) as its most frequent letter. The island in question is the one on which he had a love affair for several years. Complete Ptxt-B correctly, decrypt Ctxt-D, and choose the safest appropriate action, based on givens, alternatives A-N, as well as common sense :)

Scoring: 1 point for Ptxt-B and 3 points for Ptxt-D, 1 point for the correct answer chosen from the list below (there is only one correct answer).

Actions: (Choose only one)

Method: The following steps suffice to produce a solution via traffic analysis and a small amount of cryptanalysis:

There are five islands, A-E, of which B and C communicate regularly and send ships back and forth, but not for warfare. Thus, we can hypothesize that B and C are either friendly or neutral toward each other.
Signals come from Island D, which are acknowledged (or replied to by Island B as: "We go to Island __ now". One can hypothesize that D and B know each other, and are headed for another island, i.e., A, C, or E. However, island E has a small harbor but no water and is uninhabited, so more reasonable choices for destinations are A and C.
The givens say that the island name in Ptxt-B is likely a vowel. This narrows the choice to A, which is your island. Also, if we note (from the givens) that A is the most frequent character in the alphabet of Ctxt-D, then we have the following trial decryption of Ctxt-D:
```
                 Ctxt-D: luiyyihaiiyoile
		 Ptxt-D? --a--a--aa--a--

```
Noting the oddity of the double letters between the first two a's, we observe that y in Ctxt-D could only be a consonant in English. A dictionary search yields y = T to be common choice. This gives:
```
                 Ctxt-D: luiyyihaiiyoile
		 Ptxt-D? --atta--aat-a--

```
which can be hypothesized to mean:
```
                 Ctxt-D: luiyyihaiiyoile
		 Ptxt-D? --attackaat-a--

```
i.e., ...attack A at...
Now, it appears that B and D are headed toward island A, with hostile intent. What does one do? One cannot escape safely to island C, since C and B appear to have a non-hostile relationship. Since A and E are the sole remaining choices, and you want to leave A, E is the only choice. Since we do not know if B or D can see E, it is best to move to E by hidden route (answer F).

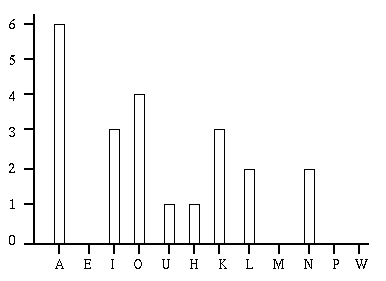

Problem 3. Histogram Manipulations (moments)

The following message in Hawaiian: "okoualohanoaikaikalani" "lhnln" is a line from a famous song. Compute its:

Ans:

given the ordering inherent on F

[1pt] d) mean character

Ans:

using the alphabet specified in (a)

[1pt] e) standard deviation about the mean, assuming F is indexed by {1,2,...,N}.

Ans:

(h) = (N^-1 · [(6-1.833)² + (4-1.833)² + 2 · (3-1.833)² + 2 · (2-1.833)²
+ 2 · (1-1.833)² 4 · (0-1.833)²])^1/2,

Problem 4. PROBLEM 4. Transposition Cipher

[5pt] Use your knowledge of digram and trigram statistics to decrypt the following transposed ciphertext. Show your work to obtain credit.

     Ctxt: htiwelhresunegoaarthenteastuerpirrowlvduaherbuigothnts
	   nctauscseteoshttgiresenocnairgtonehwtahahesodecsnniezz

Method: One approach is to perform the following steps:

Observe that there are two z's at the end of the ciphertext (a giveaway). Assuming the last two characters are "padding", we see that N = 108.
Factoring N, we obtain 2x94, 3x36, 4x47, 6x18, and 9x12.
Trying 2 and 4 as blocklengths, we see that no intelligible text results from any permutation. The same is true of a blocklength of 6.
However, looking at the introductory text, we see that the phrase while there might be present in the first ten letters. Let's try to fit that hypothesis to a block length of 9:
```
     Index: 123456789 123456789 123456789 123456789 ...
     Ctxt.: htiwelhre sunegoaar thenteast uerpirrow ...
     Xpos1: 4736-21-8 473652198 473652198
     Ptxt1: whilether eanogusra naeethtts (Wrong!)
     Xpos2: 4136-27-8 413652798 413652798 413652798 ...
     Ptxt2: whilether esnoguara nteethats purrierwo ...

```
On the first attempt, (Xpos1,Ptxt1), we recognize that there are two h's and two e's, and put dashes in the e positions. By permuting the h positions, we can obtain recognizable plaintext on the second attempt (Xpos2,Ptxt2).

Dividing the ciphertext into blocks of nine characters and applying the transposition Xpos2, we obtain the plaintext:


        "While there's no guarantee that Spurrier would
        have brought instant success to the Tigers, one
        can't ignore what he has done since."

                      -- From the Alligator 10/96

A similar result could have been obtained by marking the h's with dashes first, then permuting the positions corresponding to e's.

Problem 5. Rotor Machine

[1pt] a) What is the role of the Steckerboard in the Enigma Machine?

Ans:

[2pt] b) How effective is the Steckerboard? Justify your answer mathematically.

Ans:

Additionally, the Steckerboard is inverted as the last step of the Enigma encryption. Denoting the plaintext as a, the rotor cipher as f, and the Steckerboard substitution as S, we express the Enigma encryption as:

e(a) = S^-1(f[S(a)]),

which implies that the inverse Steckerboard substitution is included in the ciphertext. This clearly provides information on S to an adversary, which decreases the security of the Enigma machine.

[2pt] c) What function did the reflector perform in the Enigma machine? Give an example.

Ans: The reflector effectively doubled the number of rotors by sending the text encrypted in the forward pass through the rotors back through the rotor stack, but by a different path. Given N rotors, the effective number of rotors (N') became 2N < N' < 2N+1. A drawing of a two-rotor machine with reflector would suffice here.

Problem 6. Vigenere Cipher (histogram attack)
[2pt] a) Given the following probability distribution of a plaintext corpus that has an alphabet of four letters:
Pr(f) = (0.08,0.24,0.36,0.32), f in {A,B,C,D},
construct the likely ciphertext probability distribution if the key has the following shifts: k = (-1,-2,0,0).

Ans: This is a simple calculation, as follows:
0 shift: (0.16,0.48,0.72,0.64) -- taken twice -1 shift: (0.24,0.36,0.32,0.08) -2 shift: (0.36,0.32,0.08,0.24) ------------------------------- -- Add Pointwise b = (0.76,1.16,1.12,0.96) -- Non-normalized result
Normalizing the sum of b to 1.0, we obtain Pr(c) = (0.19,0.29,0.28,0.24) .
[1pt] b) If the ciphertext frequency distribution is nearly even, then what characteristics do you expect the key to have? Illustrate your answer with a numerical example.

Ans: This is another simple problem. If Pr(c) is uniform, then all possible key shifts are represented once, and the key is comprised of those shifts. This makes determination of the key length easy, since it will be a multiple of the alphabet size. The preceding assertion can be easily verified by noting that the number of possible shifts over an alphabet F is equal to |F|. An example similar to the one above, where |F| < 4 would suffice (i.e., a 2- or 3-character alphabet).
[2pt] c) Under what conditions is the Kasiski attack infeasible? Justify your answer with supporting arguments.

Ans: The Kasiski attack is infeasible when the period of the Vigenere cipher is large in relationship to the alphabet size. The Kasiski constraint says that two identical segments of plaintext will be encrypted to the same ciphertext when they occur in the plaintext at x positions apart, where x 0 mod m, where m denotes the keyword length.
In practice, we search the ciphertext for pairs of identical segments and tabulate the distance between the starting points of each element in a given pair. Thus, we have two primary implementational problems if the cipher period N is too long, namely,

N may exceed the length of the ciphertext, which is certainly possible in the rotor machine. In this case, there is no ciphertext repetition.

N may be sufficiently long that the ciphertext repeats only once or twice, and the actual distances cannot be distinguished from false repetitions, which may occur the same number of times.

A useful example of an encryption that cannot usually be attacked with the Kasiski cipher is a three-rotor Enigma machine with reflector, implemented over the alphabet A-Z.

Problem 7. Data Encryption Standard
DES has expansion permutations and permuted choices (PCs). We would normally lose info with permuted choices, which are used twice in each DES cycle.
[1pt] a) Where and how are PCs used?

Ans: PCs are used once in selecting 48 bits of the 56-bit key to use for a particular cycle. Although the PC is the same for each cycle, the key itself is permuted each cycle (each half is rotated left logically one or two bits on each cycle) so the resultant 48-bit word uses different bits in different places each cycle.
The other place PCs are used is in the S-boxes, where the 48-bit expanded right half of the (partially encrypted data) is selected down to 32 bits (after combining it with the 48-bit cycle key). This is not so much a PC as a 32-bit encoding of a 48-bit quantity that has in it some redundancy. (That is, there is not really a mapping of some of the input bits to the output bits with some inputs dropped, but all of the input bits help select the output bits....)
[2pt] b) Show that information is not lost when PCs are used in DES.

Ans: The PC applied to the key to get the cycle key does not affect the data directly - only key info is lost, but that is OK as the receiver already has the whole 56-bit key. In the S-boxes, recall that the 48-bit intermediate result is taken as 8 6-bit blocks, each of which produces a 4-bit code out of the S-box, to provide a 32-bit result. Where did these 6-bit blocks come from? They are the result of XORing the 48-bit cycle key (no info loss there) with the result of the expansion permutation applied to the 32-bit right half of data. This EP has a critical property - it takes the 32-bit input as 8 4-bit blocks, each of which is expanded to a 6-bit block by taking the "nearest" bit on the end of the two adjacent blocks (including "wrap-around" so block 7 is adjacent to block 0) - the two end bits are redundant. In the S-boxes, the two end bits (after XORing with the cycle key) are then used to select the row, while the 4 center bits select the column. In essence, the two redundant bits select a mono-alphabetic substitution, while the 4 center bits are the symbol being encoded in the 4-bit output of the S-box. Thus no info is lost.
[2pt] c) Relate DES to Shannon's observations about product ciphers. Be specific in showing how DES satisfies the desired properties.

Ans: Product ciphers are the result of concatenating a substitution cipher with a transposition cipher. This can result in a much stronger cipher than either cipher taken alone, or the result of concatenating two ciphers of the same type.
DES alternates transposition with substitution in each cycle, along with the XOR with the cycle key. If we simplified DES to use 32-bit cycle keys, then we would have an XOR with the cycle key, then a substitution (only one, not one of 4), followed by a transposition (the P-box). DES complicates this slightly with the EP/PC/S-Box approach which uses 48-bit intermediate results, but the basic scheme of each cycle is a product cipher.
