Matrix: VDOL/spaceStation_10

Description: spaceStation optimal control problem (matrix 10 of 14)

VDOL/spaceStation_10 graph
(undirected graph drawing)

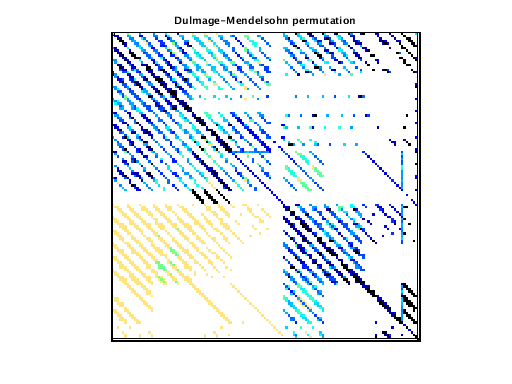

VDOL/spaceStation_10 dmperm of VDOL/spaceStation_10
scc of VDOL/spaceStation_10

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: VDOL
  • Click here for a description of the VDOL group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 141 KB. Use UFget(2743) or UFget('VDOL/spaceStation_10') in MATLAB.
  • download in Matrix Market format, file size: 109 KB.
  • download in Rutherford/Boeing format, file size: 94 KB.

    Matrix properties
    number of rows1,272
    number of columns1,272
    nonzeros17,478
    structural full rank?yes
    structural rank1,272
    # of blocks from dmperm7
    # strongly connected comp.3
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorB. Senses, A. Rao
    editorT. Davis
    date2015
    kindoptimal control problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 1272-by-1
    rownamefull 1272-by-99
    mappingfull 1272-by-1

    Notes:

    Optimal control problem, Vehicle Dynamics & Optimization Lab, UF
    Anil Rao and Begum Senses, University of Florida
    http://vdol.mae.ufl.edu

    This matrix arises from an optimal control problem described below.
    Each optimal control problem gives rise to a sequence of matrices of
    different sizes when they are being solved inside GPOPS, an optimal
    control solver created by Anil Rao, Begum Senses, and others at in VDOL
    lab at the University of Florida.  This is one of the matrices in one
    of these problems.  The matrix is symmetric indefinite.

    Rao, Senses, and Davis have created a graph coarsening strategy
    that matches pairs of nodes.  The mapping is given for this matrix,
    where map(i)=k means that node i in the original graph is mapped to
    node k in the smaller graph.  map(i)=map(j)=k means that both nodes
    i and j are mapped to the same node k, and thus nodes i and j have
    been merged.

    This matrix consists of a set of nodes (rows/columns) and the
    names of these rows/cols are given

    Anil Rao, Begum Sense, and Tim Davis, 2015.

    VDOL/spaceStation

    Space station attitude optimal control problem is taken from
    Ref.~\cite{betts2010practical}. The goal of the space station
    attitude control problem is to determine the state and the control
    that minimize the magnitude of the final momentum while the space
    statition reaches an orientation at the final time that can be
    maintained without utilizing additional control torque. The state of
    the system is defined by the angular velocity of the spacecraft with
    respect to an inertial reference frame, Euler-Rodriguez parameters
    used to defined the vehicle attitude, and the angular momentum of the
    control moment gyroscope and the control of the system is the torque.
    The specified accuracy tolerance of $10^{-7}$ were satisfied after
    thirteen mesh iterations. As the mesh refinement proceeds, the size
    of the KKT matrices increases from 99 to 1640.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD35,149
    Cholesky flop count1.7e+06
    nnz(L+U), no partial pivoting, with AMD69,026
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD77,479
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD151,402

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 04-Jun-2015.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
