Matrix properties
number of rows	7,773
number of columns	7,773
nonzeros	82,500
structural full rank?	yes
structural rank	7,773

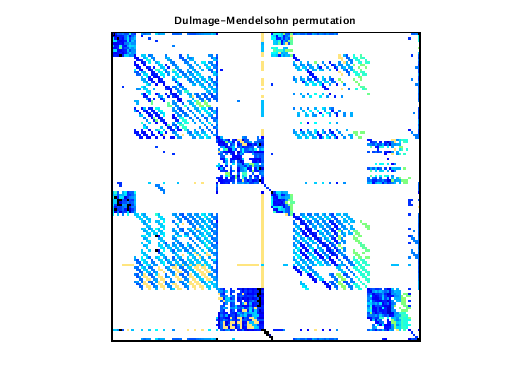

# of blocks from dmperm	11
# strongly connected comp.	3
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	symmetric
type	real
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	B. Senses, A. Rao
editor	T. Davis
date	2015
kind	optimal control problem
2D/3D problem?	no

Additional fields	size and type
b	full 7773-by-1
rowname	full 7773-by-101
mapping	full 7773-by-1

Notes:

Optimal control problem, Vehicle Dynamics & Optimization Lab, UF
Anil Rao and Begum Senses, University of Florida
http://vdol.mae.ufl.edu

This matrix arises from an optimal control problem described below.
Each optimal control problem gives rise to a sequence of matrices of
different sizes when they are being solved inside GPOPS, an optimal
control solver created by Anil Rao, Begum Senses, and others at in VDOL
lab at the University of Florida.  This is one of the matrices in one
of these problems.  The matrix is symmetric indefinite.

Rao, Senses, and Davis have created a graph coarsening strategy
that matches pairs of nodes.  The mapping is given for this matrix,
where map(i)=k means that node i in the original graph is mapped to
node k in the smaller graph.  map(i)=map(j)=k means that both nodes
i and j are mapped to the same node k, and thus nodes i and j have
been merged.

This matrix consists of a set of nodes (rows/columns) and the
names of these rows/cols are given

Anil Rao, Begum Sense, and Tim Davis, 2015.

VDOL/kineticBatchReactor

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	128,254
Cholesky flop count	3.0e+06
nnz(L+U), no partial pivoting, with AMD	248,735
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	11,591,117
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	17,713,451
