Matrix: Schenk_IBMNA/c-18

Description: IBM TJ Watson, non-linear optimization

Schenk_IBMNA/c-18 graph
(undirected graph drawing)

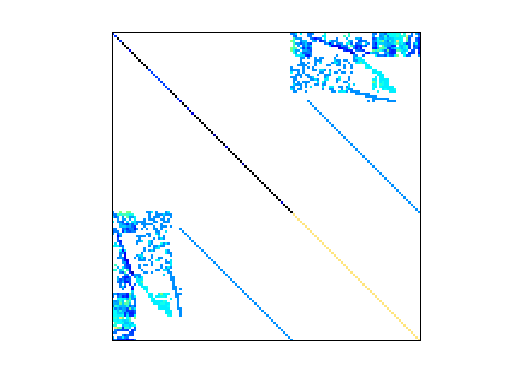

Schenk_IBMNA/c-18

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Schenk_IBMNA
  • Click here for a description of the Schenk_IBMNA group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 94 KB. Use UFget(1537) or UFget('Schenk_IBMNA/c-18') in MATLAB.
  • download in Matrix Market format, file size: 79 KB.
  • download in Rutherford/Boeing format, file size: 73 KB.

    Matrix properties
    number of rows2,169
    number of columns2,169
    nonzeros15,145
    structural full rank?yes
    structural rank2,169
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorIBM
    editorO. Schenk
    date2006
    kindoptimization problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 2169-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD16,495
    Cholesky flop count3.5e+05
    nnz(L+U), no partial pivoting, with AMD30,821
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD43,316
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD92,791

    SVD-based statistics:
    norm(A)641045
    min(svd(A))0.00264599
    cond(A)2.42271e+08
    rank(A)2,169
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

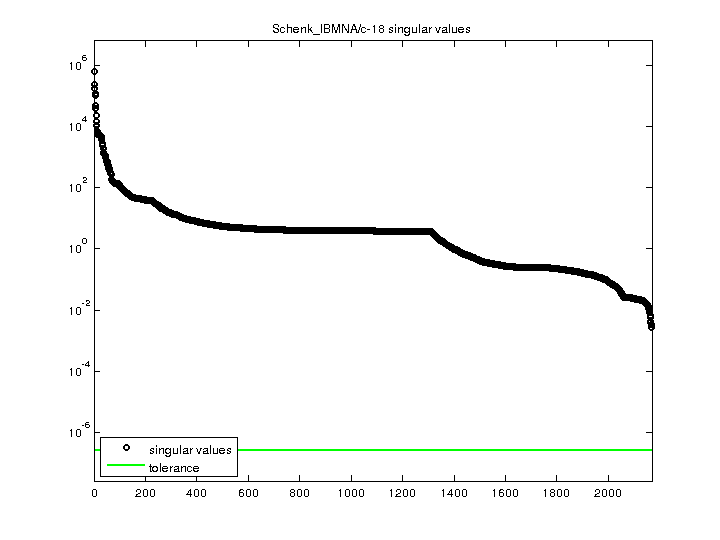

    Schenk_IBMNA/c-18 svd

    For a description of the statistics displayed above, click here.
