Matrix: SNAP/p2p-Gnutella04

Description: Gnutella peer to peer network from August 4 2002

SNAP/p2p-Gnutella04 graph SNAP/p2p-Gnutella04 graph
(bipartite graph drawing) (graph drawing of A+A')


SNAP/p2p-Gnutella04

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: SNAP
  • Click here for a description of the SNAP group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 100 KB. Use UFget(2308) or UFget('SNAP/p2p-Gnutella04') in MATLAB.
  • download in Matrix Market format, file size: 131 KB.
  • download in Rutherford/Boeing format, file size: 112 KB.

    Matrix properties
    number of rows10,879
    number of columns10,879
    nonzeros39,994
    # strongly connected comp.6,563
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typebinary
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Ripeanu and I. Foster and A. Iamnitchi
    editorJ. Leskovec
    date2002
    kinddirected graph
    2D/3D problem?no

    Notes:

    Networks from SNAP (Stanford Network Analysis Platform) Network Data Sets,
    Jure Leskovec http://snap.stanford.edu/data/index.html
    email jure at cs.stanford.edu

    Gnutella peer-to-peer network, August 4 2002

    Dataset information

    A sequence of snapshots of the Gnutella peer-to-peer file sharing network from
    August 2002. There are total of 9 snapshots of Gnutella network collected in
    August 2002. Nodes represent hosts in the Gnutella network topology and edges
    represent connections between the Gnutella hosts.

    Dataset statistics
    Nodes   10876
    Edges   39994
    Nodes in largest WCC    10876 (1.000)
    Edges in largest WCC    39994 (1.000)
    Nodes in largest SCC    4317 (0.397)
    Edges in largest SCC    18742 (0.469)
    Average clustering coefficient  0.0080
    Number of triangles     934
    Fraction of closed triangles    0.005402
    Diameter (longest shortest path)    9
    90-percentile effective diameter    5.4

    Source (citation)

    J. Leskovec, J. Kleinberg and C. Faloutsos. Graph Evolution: Densification and
    Shrinking Diameters. ACM Transactions on Knowledge Discovery from Data (ACM
    TKDD), 1(1), 2007.

    M. Ripeanu and I. Foster and A. Iamnitchi. Mapping the Gnutella Network:
    Properties of Large-Scale Peer-to-Peer Systems and Implications for System
    Design. IEEE Internet Computing Journal, 2002.

    Files
    File    Description
    p2p-Gnutella04.txt.gz   Directed Gnutella P2P network from August 4 2002

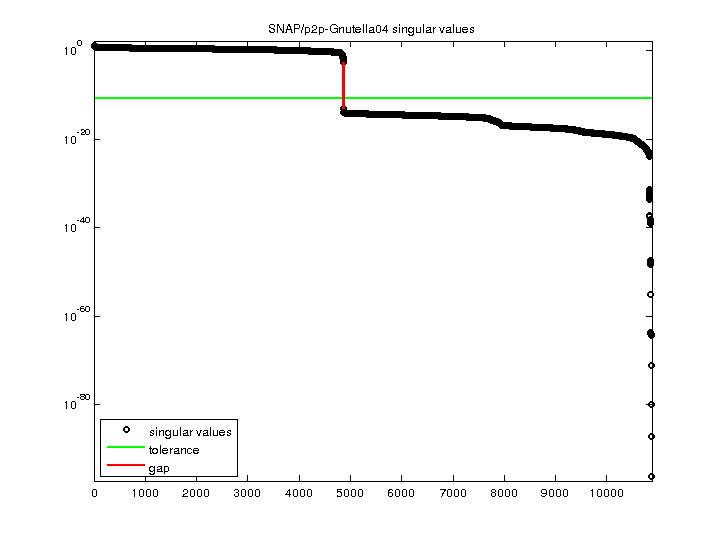

    SVD-based statistics:
    norm(A)15.4134
    min(svd(A))0
    cond(A)Inf
    rank(A)4,860
    null space dimension6,019
    full numerical rank?no
    singular value gap2.46608e+10

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    SNAP/p2p-Gnutella04 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
