Matrix: Pajek/dictionary28

Description: Pajek network: dictionary

Pajek/dictionary28 graph
(undirected graph drawing)


Pajek/dictionary28

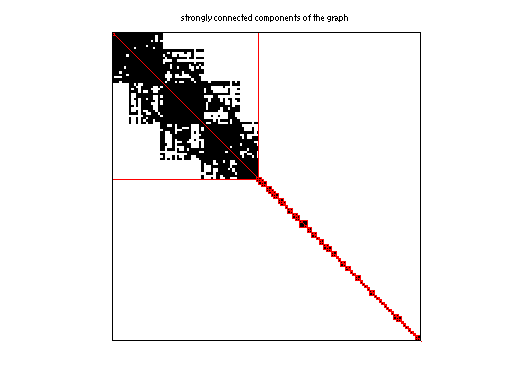

scc of Pajek/dictionary28

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Pajek
  • Click here for a description of the Pajek group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 530 KB. Use UFget(1459) or UFget('Pajek/dictionary28') in MATLAB.
  • download in Matrix Market format, file size: 470 KB.
  • download in Rutherford/Boeing format, file size: 417 KB.

    Matrix properties
    number of rows52,652
    number of columns52,652
    nonzeros178,076
    # strongly connected comp.17,903
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    author
    editorV. Batagelj
    date2006
    kindundirected graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 52652-by-8

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------


    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
