  • Matrix: Pajek/Tina_DisCog
  • Description: Pajek network: student govt, Univ. Ljubljana, 1992 (discuss, recog.)
  • download as a MATLAB mat-file, file size: 959 bytes. Use UFget(1528) or UFget('Pajek/Tina_DisCog') in MATLAB.
  • download in Matrix Market format
  • download in Rutherford/Boeing format

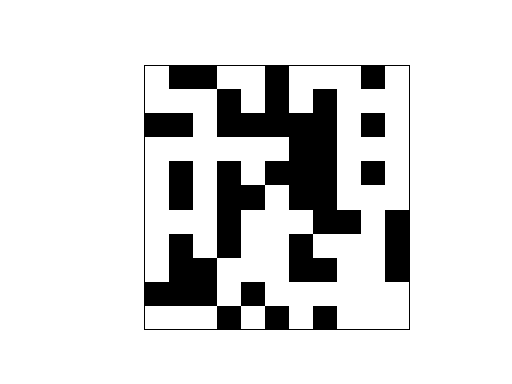

    Pajek/Tina_DisCog

    Pajek/Tina_DisCog graph

    Matrix properties
    number of rows11
    number of columns11
    nonzeros48
    structural full rank?yes
    structural rank11
    # of blocks from dmperm2
    # strongly connected comp.1
    entries not in dmperm blocks3
    explicit zero entries0
    nonzero pattern symmetry 50%
    numeric value symmetry 50%
    typebinary
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorV. Batagelj
    editorV. Batagelj
    date1992
    kinddirected graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 11-by-10

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------
     STUDENT GOVERNMENT OF UNIVERSITY OF LJUBLJANA (Hlebec 1992)
     discussion, recognition


    Ordering statistics:AMD METIS DMPERM+
    nnz(chol(P*(A+A'+s*I)*P'))51 52 45
    Cholesky flop count2.8e+02 2.9e+02 2.3e+02
    nnz(L+U), no partial pivoting91 93 82
    nnz(V) for QR, upper bound nnz(L) for LU42 44 31
    nnz(R) for QR, upper bound nnz(U) for LU55 59 55
