  • Matrix: Pajek/Ragusa18
  • Description: Pajek network: Ragusa set
  • download as a MATLAB mat-file, file size: 1 KB. Use UFget(1516) or UFget('Pajek/Ragusa18') in MATLAB.
  • download in Matrix Market format
  • download in Rutherford/Boeing format

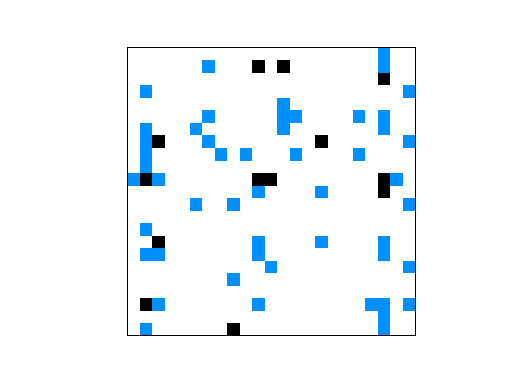

    Pajek/Ragusa18

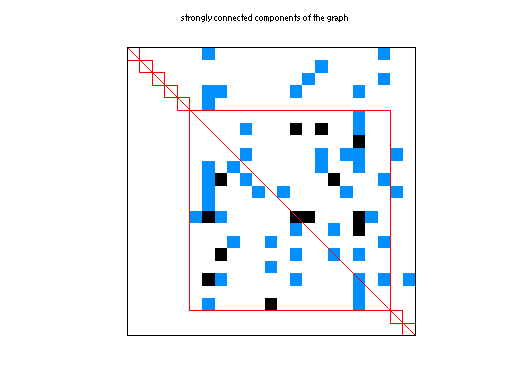

    scc of Pajek/Ragusa18

    Pajek/Ragusa18 graph

    Pajek/Ragusa18 graph

    Matrix properties
    number of rows23
    number of columns23
    nonzeros64
    structural full rank?no
    structural rank15
    # of blocks from dmperm4
    # strongly connected comp.8
    explicit zero entries0
    nonzero pattern symmetry 33%
    numeric value symmetry 20%
    typeinteger
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorV. Batagelj
    editorV. Batagelj
    date2006
    kinddirected weighted graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 23-by-9
    coordfull 23-by-3

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------


    Ordering statistics:AMD METIS
    nnz(chol(P*(A+A'+s*I)*P'))86 88
    Cholesky flop count3.7e+02 4.0e+02
    nnz(L+U), no partial pivoting149 153
    nnz(V) for QR, upper bound nnz(L) for LU91 66
    nnz(R) for QR, upper bound nnz(U) for LU96 103
