  • Matrix: Pajek/Erdos982
  • Description: Pajek network: Erdos collaboration network
  • download as a MATLAB mat-file, file size: 113 KB. Use UFget(1468) or UFget('Pajek/Erdos982') in MATLAB.
  • download in Matrix Market format
  • download in Rutherford/Boeing format

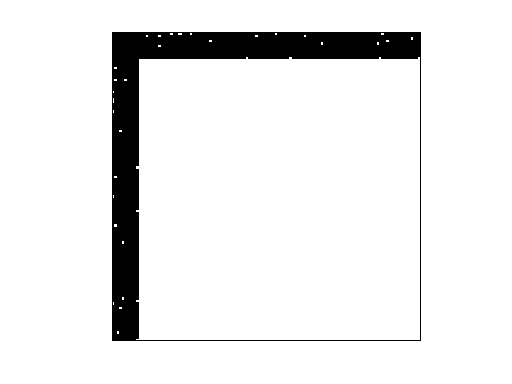

    Pajek/Erdos982

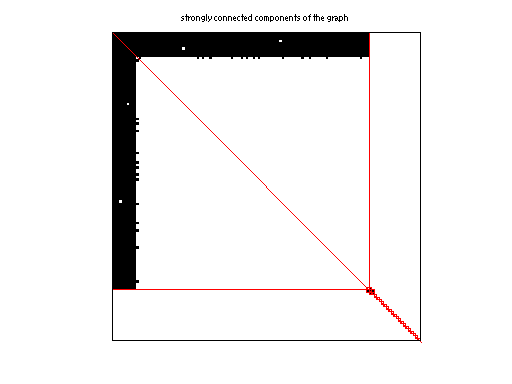

    scc of Pajek/Erdos982

    Pajek/Erdos982 graph

    Matrix properties
    number of rows5,822
    number of columns5,822
    nonzeros14,750
    structural full rank?no
    structural rank908
    # of blocks from dmperm50
    # strongly connected comp.877
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorJ. Grossman, P. Iain, R. Castro
    editorV. Batagelj
    date2006
    kindundirected graph
    2D/3D problem?no

    Additional fieldssize and type
    clusterfull 5822-by-1
    nodenamefull 5822-by-40

    Notes:

    ------------------------------------------------------------------------------
    Pajek network converted to sparse adjacency matrix for inclusion in UF sparse
    matrix collection, Tim Davis.  For Pajek datasets, See V. Batagelj & A. Mrvar,
    http://vlado.fmf.uni-lj.si/pub/networks/data/.
    ------------------------------------------------------------------------------


    Ordering statistics:AMD METIS
    nnz(chol(P*(A+A'+s*I)*P'))28,633 41,466
    Cholesky flop count1.5e+06 3.8e+06
    nnz(L+U), no partial pivoting51,444 77,110
    nnz(V) for QR, upper bound nnz(L) for LU1,512,842 1,478,160
    nnz(R) for QR, upper bound nnz(U) for LU367,698 422,126
