Matrix: Oberwolfach/t2dah_e

Description: Oberwolfach: micropyros thruster, E matrix

Oberwolfach/t2dah_e graph
(undirected graph drawing)


Oberwolfach/t2dah_e

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Oberwolfach
  • Click here for a description of the Oberwolfach group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 698 KB. Use UFget(1205) or UFget('Oberwolfach/t2dah_e') in MATLAB.
  • download in Matrix Market format, file size: 716 KB.
  • download in Rutherford/Boeing format, file size: 620 KB.

    Matrix properties
    number of rows11,445
    number of columns11,445
    nonzeros176,117
    structural full rank?yes
    structural rank11,445
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorE. Rudnyi
    editorE. Rudnyi
    date2004
    kindduplicate model reduction problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD491,255
    Cholesky flop count4.1e+07
    nnz(L+U), no partial pivoting, with AMD971,065
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD841,710
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD2,001,083

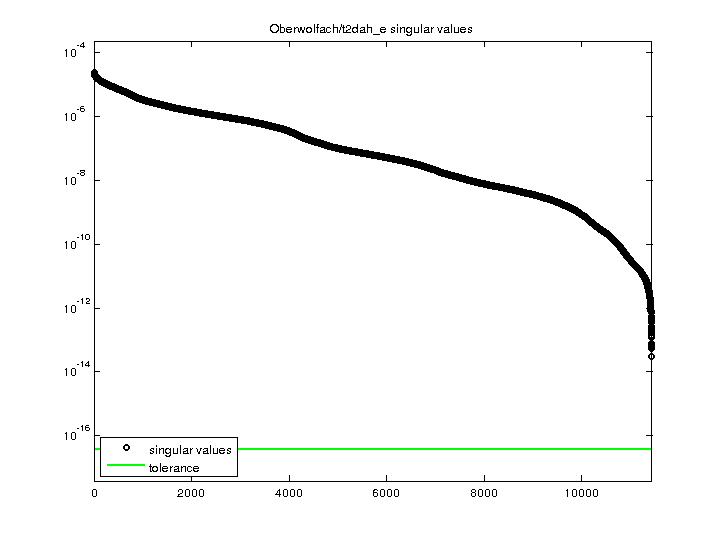

    SVD-based statistics:
    norm(A)2.28682e-05
    min(svd(A))3.16345e-14
    cond(A)7.22888e+08
    rank(A)11,445
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Oberwolfach/t2dah_e svd

    For a description of the statistics displayed above, click here.
