Matrix: Newman/cond-mat

Description: collaboration network, preprints in condensed matter archive, www.arxiv.org

Newman/cond-mat graph
(undirected graph drawing)


Newman/cond-mat
scc of Newman/cond-mat

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Newman
  • Click here for a description of the Newman group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 413 KB. Use UFget(2393) or UFget('Newman/cond-mat') in MATLAB.
  • download in Matrix Market format, file size: 288 KB.
  • download in Rutherford/Boeing format, file size: 265 KB.

    Matrix properties
    number of rows16,726
    number of columns16,726
    nonzeros95,188
    # strongly connected comp.1,188
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorM. Newman
    editorM. Newman
    date2001
    kindundirected weighted graph
    2D/3D problem?no

    Additional fieldssize and type
    nodenamefull 16726-by-23

    Notes:

    Network collection from M. Newman
    http://www-personal.umich.edu/~mejn/netdata/

    The graph cond-mat contains the collaboration network of scientists
    posting preprints on the condensed matter archive at www.arxiv.org,
    1995-1999, as compiled by M. Newman.  The network is weighted, with weights
    assigned as described in the original papers.  Please cite, as appropriate,
    one or more of:

      M. E. J. Newman, The structure of scientific collaboration networks,
      Proc. Natl. Acad. Sci. USA 98, 404-409 (2001).

      M. E. J. Newman, Scientific collaboration networks: I. Network
      construction and fundamental results, Phys. Rev. E 64, 016131 (2001).

      M. E. J. Newman, Scientific collaboration networks: II. Shortest paths,
      weighted networks, and centrality, Phys. Rev. E 64, 016132 (2001).

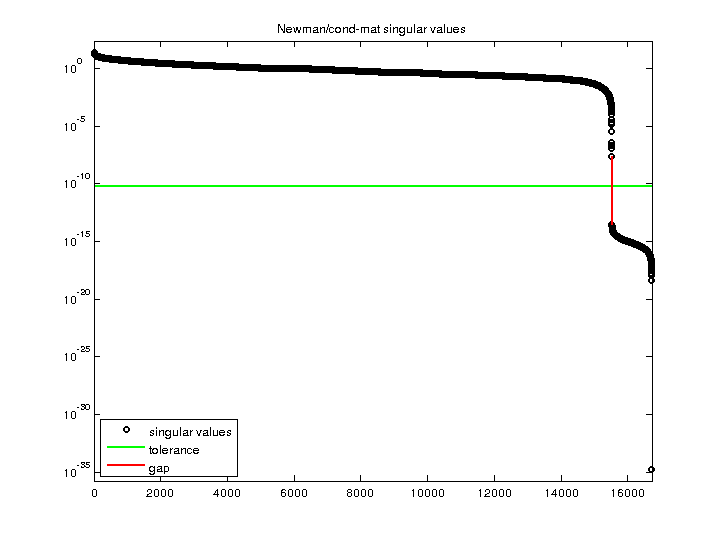

    SVD-based statistics:
    norm(A)24.427
    min(svd(A))1.69577e-35
    cond(A)1.44047e+36
    rank(A)15,523
    null space dimension1,203
    full numerical rank?no
    singular value gap945337

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Newman/cond-mat svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
