Matrix: Nasa/shuttle_eddy

Description: SHUTTLE_EDDY: Nasa matrix, but with diagonal added to original matrix

Nasa/shuttle_eddy graph
(undirected graph drawing)


Nasa/shuttle_eddy

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Nasa
  • Click here for a description of the Nasa group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 91 KB. Use UFget(763) or UFget('Nasa/shuttle_eddy') in MATLAB.
  • download in Matrix Market format, file size: 112 KB.
  • download in Rutherford/Boeing format, file size: 95 KB.

    Matrix properties
    number of rows10,429
    number of columns10,429
    nonzeros103,599
    structural full rank?yes
    structural rank10,429
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorNASA
    editorG. Kumfert, A. Pothen
    date1995
    kindduplicate structural problem
    2D/3D problem?yes

    Notes:

    Identical to Pothen/shuttle_eddy; the latter has xyz coordinates.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD326,936
    Cholesky flop count1.7e+07
    nnz(L+U), no partial pivoting, with AMD643,443
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD566,762
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD1,108,728

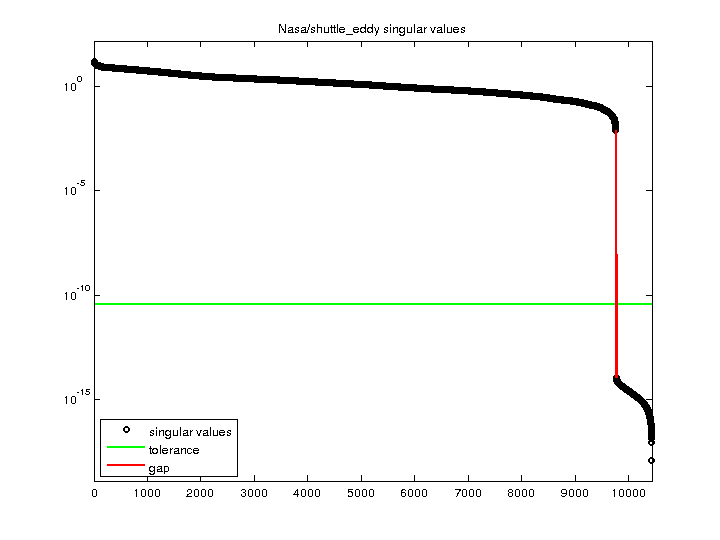

    SVD-based statistics:
    norm(A)16.1416
    min(svd(A))1.1553e-18
    cond(A)1.39717e+19
    rank(A)9,757
    sprank(A)-rank(A)672
    null space dimension672
    full numerical rank?no
    singular value gap7.0787e+11

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    Nasa/shuttle_eddy svd

    For a description of the statistics displayed above, click here.
