Matrix: Mulvey/pfinan512

Description: Portfolio optim, 512 scenarios, Ed Rothberg, SGI, John Mulvey,Princeton

Mulvey/pfinan512 graph
(undirected graph drawing)


Mulvey/pfinan512

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mulvey
  • Click here for a description of the Mulvey group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 881 KB. Use UFget(753) or UFget('Mulvey/pfinan512') in MATLAB.
  • download in Matrix Market format, file size: 874 KB.
  • download in Rutherford/Boeing format, file size: 695 KB.

    Matrix properties
    number of rows74,752
    number of columns74,752
    nonzeros596,992
    structural full rank?yes
    structural rank74,752
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorA. Berger, J. Mulvey, E. Rothberg, R. Vanderbei
    editorE. Rothberg
    date1997
    kindduplicate economic problem
    2D/3D problem?no

    Notes:

    This matrix is the nonzero pattern of Mulvey/finan512


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD2,837,714
    Cholesky flop count6.3e+08
    nnz(L+U), no partial pivoting, with AMD5,600,676
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD7,132,462
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD15,382,253

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

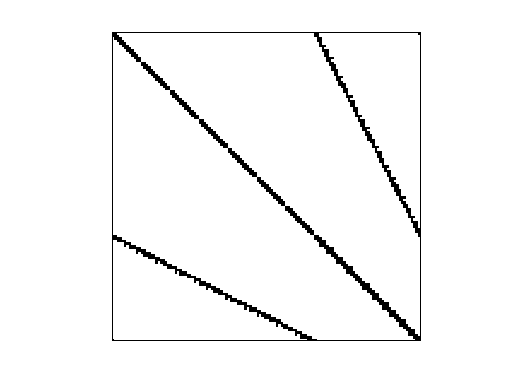

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
