Matrix: Mittelmann/rail582

Description: Italian railways (H. Mittelmann test set)

Mittelmann/rail582 graph
(bipartite graph drawing)


Mittelmann/rail582

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Mittelmann
  • Click here for a description of the Mittelmann group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 340 KB. Use UFget(1656) or UFget('Mittelmann/rail582') in MATLAB.
  • download in Matrix Market format, file size: 978 KB.
  • download in Rutherford/Boeing format, file size: 405 KB.

    Matrix properties
    number of rows582
    number of columns56,097
    nonzeros402,290
    structural full rank?yes
    structural rank582
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorP. Nobili
    editorJ. Beasley
    date2005
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 582-by-1
    cfull 56097-by-1
    lofull 56097-by-1
    hifull 56097-by-1
    z0full 1-by-1

    Notes:

    Hans Mittelmann test set, http://plato.asu.edu/ftp/lptestset
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    RAIL: set covering problems from the Italian railroad, see
    http://people.brunel.ac.uk/~mastjjb/jeb/orlib/scpinfo.html


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD14,837,652
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD98,409

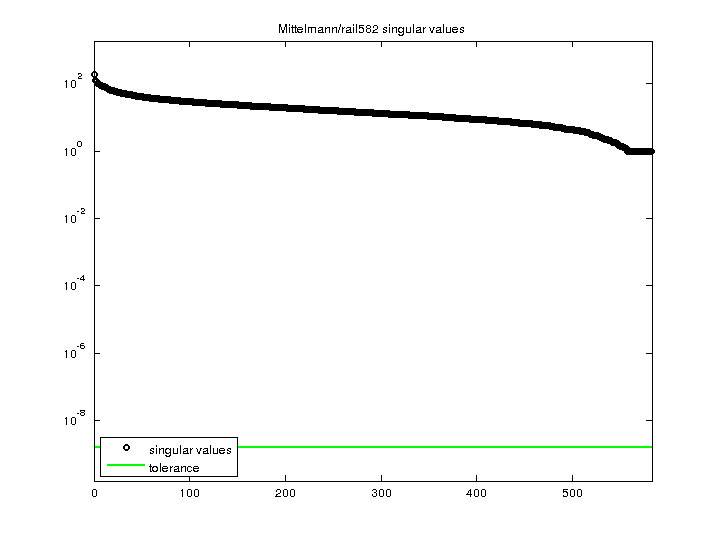

    SVD-based statistics:
    norm(A)185.907
    min(svd(A))1
    cond(A)185.907
    rank(A)582
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

    Mittelmann/rail582 svd

    For a description of the statistics displayed above, click here.
