Matrix: Meszaros/stat96v4

Description: linear programming problem, C. Meszaros test set

Meszaros/stat96v4 graph
(bipartite graph drawing)


Meszaros/stat96v4

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 500 KB. Use UFget(1775) or UFget('Meszaros/stat96v4') in MATLAB.
  • download in Matrix Market format, file size: 1 MB.
  • download in Rutherford/Boeing format, file size: 627 KB.

    Matrix properties
    number of rows3,173
    number of columns63,076
    nonzeros491,336
    structural full rank?yes
    structural rank3,173
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    author
    editorC. Meszaros
    date2005
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 3173-by-1
    cfull 63076-by-1
    lofull 63076-by-1
    hifull 63076-by-1
    z0full 1-by-1

    Notes:

    http://www.sztaki.hu/~meszaros/public_ftp/lptestset
    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD63,865,569
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD190,582

    SVD-based statistics:
    norm(A)19.62
    min(svd(A))0.00206508
    cond(A)9500.86
    rank(A)3,173
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero
    status:ok

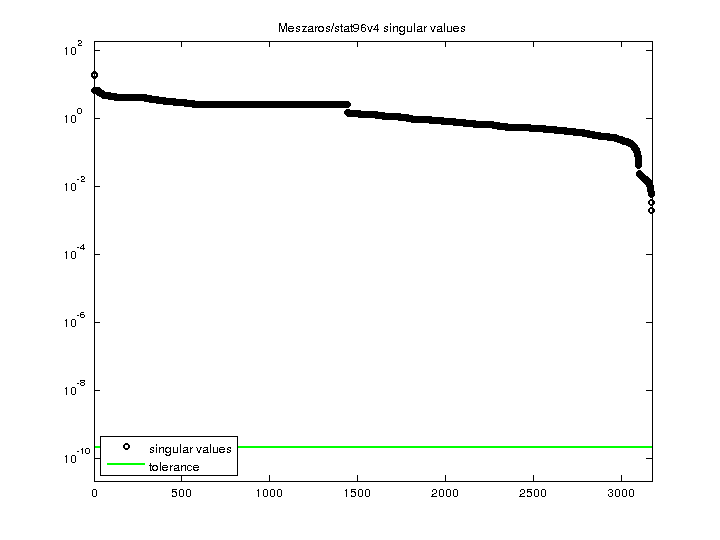

    Meszaros/stat96v4 svd

    For a description of the statistics displayed above, click here.
