Matrix: Meszaros/nemswrld

Description: linear programming problem, C. Meszaros test set

Meszaros/nemswrld graph
(bipartite graph drawing)

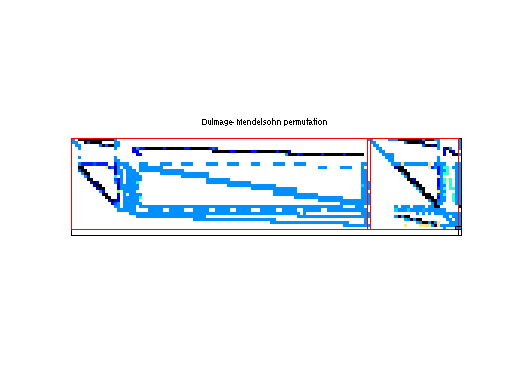

Meszaros/nemswrld dmperm of Meszaros/nemswrld

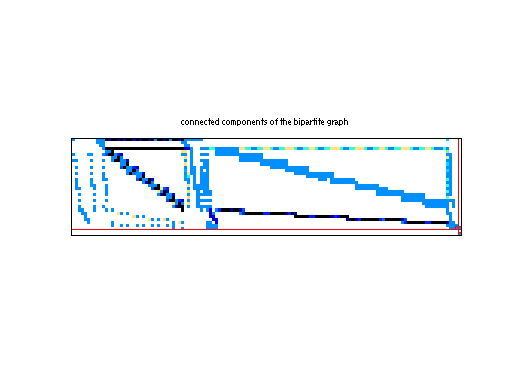

scc of Meszaros/nemswrld

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Meszaros
  • Click here for a description of the Meszaros group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 537 KB. Use UFget(1738) or UFget('Meszaros/nemswrld') in MATLAB.
  • download in Matrix Market format, file size: 751 KB.
  • download in Rutherford/Boeing format, file size: 506 KB.

    Matrix properties
    number of rows7,138
    number of columns28,550
    structural full rank?no
    structural rank6,647
    # of blocks from dmperm137
    # strongly connected comp.586
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    Cholesky candidate?no
    positive definite?no

    editorC. Meszaros
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 7138-by-1
    cfull 28550-by-1
    lofull 28550-by-1
    hifull 28550-by-1
    z0full 1-by-1

    Converted to standard form via Resende and Veiga's mpsrd:
    minimize c'*x, subject to A*x=b and lo <= x <= hi

    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD22,097,419
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD901,915

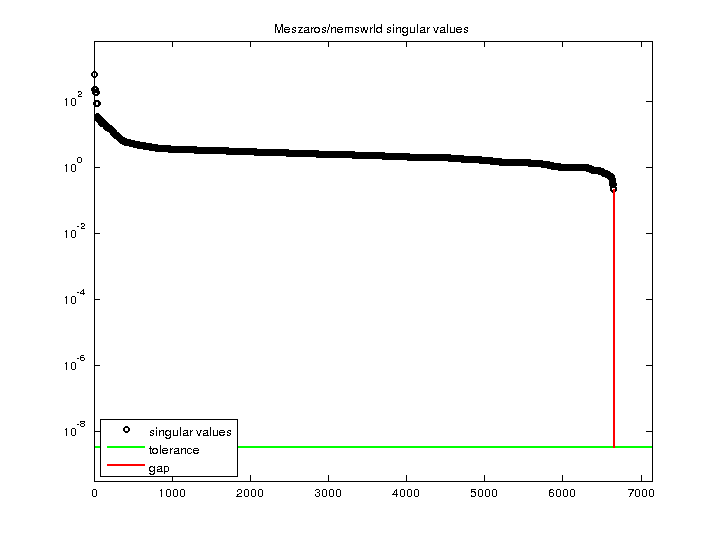

    SVD-based statistics:
    null space dimension491
    full numerical rank?no
    singular value gapInf

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A') with droptol of zero

    Meszaros/nemswrld svd
