Matrix: LPnetlib/lp_stocfor1

Description: Netlib LP problem stocfor1: minimize c'*x, where Ax=b, lo<=x<=hi

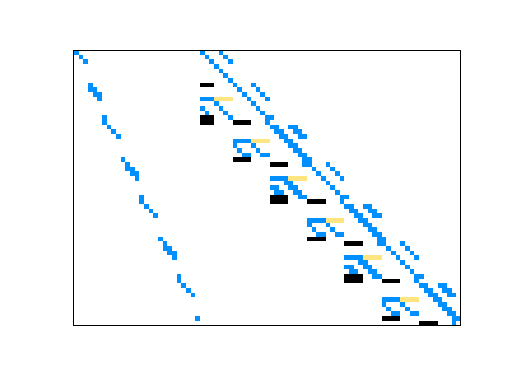

LPnetlib/lp_stocfor1 graph
(bipartite graph drawing)

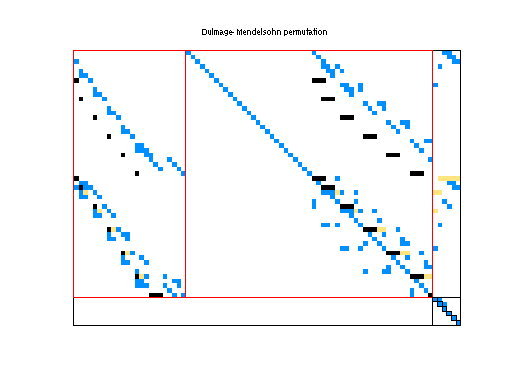

LPnetlib/lp_stocfor1 dmperm of LPnetlib/lp_stocfor1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 4 KB. Use UFget(695) or UFget('LPnetlib/lp_stocfor1') in MATLAB.
  • download in Matrix Market format, file size: 4 KB.
  • download in Rutherford/Boeing format, file size: 3 KB.

    Matrix properties
    number of rows117
    number of columns165
    nonzeros501
    structural full rank?yes
    structural rank117
    # of blocks from dmperm12
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorG. Gassmann
    editorD. Gay
    date1988
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 117-by-1
    cfull 165-by-1
    lofull 165-by-1
    hifull 165-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data

    The following are relevant excerpts from lp/data/readme (by David M. Gay):

    The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
    slack and surplus columns and the right-hand side vector, but include
    the cost row.  We have omitted other free rows and all but the first
    right-hand side vector, as noted below.  The byte count is for the
    MPS compressed file; it includes a newline character at the end of each
    line.  These files start with a blank initial line intended to prevent
    mail programs from discarding any of the data.  The BR column indicates
    whether a problem has bounds or ranges:  B stands for "has bounds", R
    for "has ranges".

    The optimal value is from MINOS version 5.3 (of Sept. 1988)
    running on a VAX with default options.

                           PROBLEM SUMMARY TABLE

    Name       Rows   Cols   Nonzeros    Bytes  BR      Optimal Value
    STOCFOR1    118    111      474       4247       -4.1131976219E+04

    STOCFOR1,2,3 are stochastic forestry problems from Gus Gassmann.  To
    quote Gus, "All of them are seven-period descriptions of a forestry
    problem with a random occurrence of forest fires, and the size varies
    according to the number of realizations you use in each period."
    STOCFOR1 "is the deterministic version, STOCFOR2 has 2 realizations
    each in periods 2 to 7, and the monster STOCFOR3 has 4,4,4,2,2, and 2
    realizations, respectively."   The compressed form of STOCFOR3 would be
    652846 bytes long, so requesting STOCFOR3 will instead get you a bundle
    of about 174 kilobytes that includes source for Gus's program, the
    data files for generating STOCFOR3 and a summary of "A Standard
    Input Format for Multistage Stochastic Linear Programs" by J.R. Birge,
    M.A.H. Dempster, H.I. Gassmann, E.A. Gunn, A.J. King, and S.W. Wallace
    [COAL Newsletter No. 17 (Dec. 1987), pp. 1-19].  Data files are also
    included for generating versions of STOCFOR1,2 that have more decimal
    places than the versions in lp/data.

    Added to Netlib on  25 June 1988



    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD1,541
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD979

    SVD-based statistics:
    norm(A)978.225
    min(svd(A))0.134621
    cond(A)7266.53
    rank(A)117
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

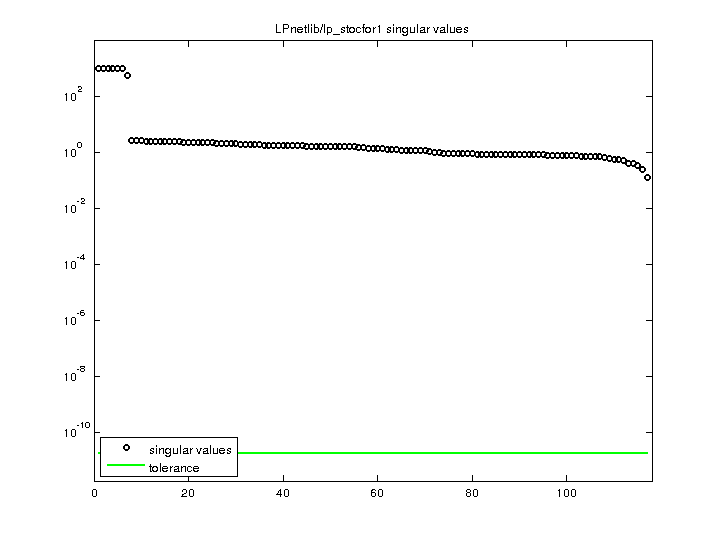

    LPnetlib/lp_stocfor1 svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
