Matrix: LPnetlib/lp_israel

Description: Netlib LP problem israel: minimize c'*x, where Ax=b, lo<=x<=hi

LPnetlib/lp_israel graph
(bipartite graph drawing)


LPnetlib/lp_israel

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: LPnetlib
  • Click here for a description of the LPnetlib group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 8 KB. Use UFget(635) or UFget('LPnetlib/lp_israel') in MATLAB.
  • download in Matrix Market format, file size: 10 KB.
  • download in Rutherford/Boeing format, file size: 7 KB.

    Matrix properties
    number of rows174
    number of columns316
    nonzeros2,443
    structural full rank?yes
    structural rank174
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typereal
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorM. Saunders
    editorD. Gay
    date
    kindlinear programming problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 174-by-1
    cfull 316-by-1
    lofull 316-by-1
    hifull 316-by-1
    z0full 1-by-1

    Notes:

    A Netlib LP problem, in lp/data.  For more information
    send email to netlib@ornl.gov with the message:

    	 send index from lp
    	 send readme from lp/data
    	 send minos from lp/data

    The following are relevant excerpts from lp/data/readme (by David M. Gay):

    The column and nonzero counts in the PROBLEM SUMMARY TABLE below exclude
    slack and surplus columns and the right-hand side vector, but include
    the cost row.  We have omitted other free rows and all but the first
    right-hand side vector, as noted below.  The byte count is for the
    MPS compressed file; it includes a newline character at the end of each
    line.  These files start with a blank initial line intended to prevent
    mail programs from discarding any of the data.  The BR column indicates
    whether a problem has bounds or ranges:  B stands for "has bounds", R
    for "has ranges".

    The optimal value is from MINOS version 5.3 (of Sept. 1988)
    running on a VAX with default options.

                           PROBLEM SUMMARY TABLE

    Name       Rows   Cols   Nonzeros    Bytes  BR      Optimal Value
    ISRAEL      175    142     2358      12109       -8.9664482186E+05

    From Michael Saunders, Systems Optimization Laboratory at Stanford University.
    When included in Netlib: Extra right-hand side vectors omitted.

    The following are relevant excerts from lp/data/minos (by Michael Saunders),
    regarding experience with MINOS 5.0 on the problems he provided:

                                                         (unscaled)   (scaled)
    File   Name    Rows  Cols  Elems  Optimal Objective  Itns  Time  Itns  Time
    ---- --------  ----  ----  -----  -----------------  ----  ----  ----  ----
      6. ISRAEL     175   142   2358 -8.9664482E+05       345   5.0   231   3.7

    * Objective  is the first row of type N.  It is minimized except as shown.

    * Itns       is the number of iterations required to solve the problem
                 by the primal simplex method, as implemented in the Fortran
                 code MINOS 5.0 (May 1985), using default values for all
                 parameters.  (The initial basis is triangular.)

    * Time       is the processor time required on an IBM 3081K.  The MINOS
                 source code was compiled with the IBM Fortran 77 compiler
                 VS FORTRAN, using the options NOSDUMP, NOSYM and OPT(3).



    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD16,368
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD12,166

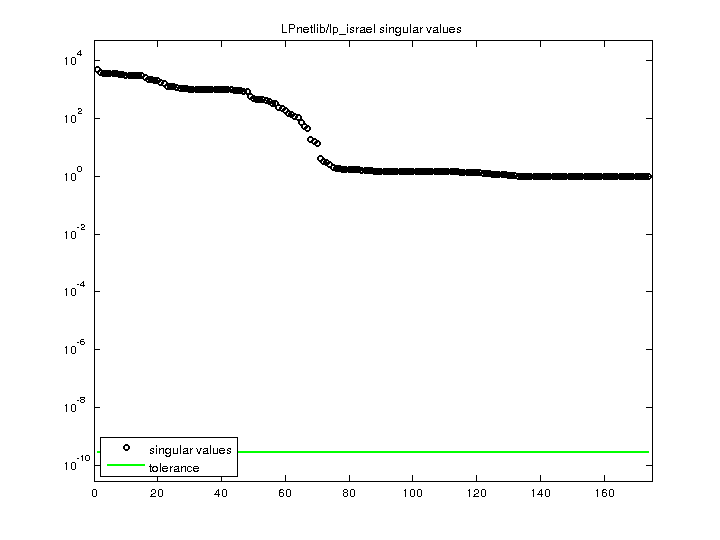

    SVD-based statistics:
    norm(A)4816.82
    min(svd(A))1
    cond(A)4816.82
    rank(A)174
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

    LPnetlib/lp_israel svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
