Matrix: JGD_G5/IG5-16

Description: Decomposable subspaces at degree d of the invariant ring of G5, Nicolas Thiery.

JGD_G5/IG5-16 graph
(bipartite graph drawing)

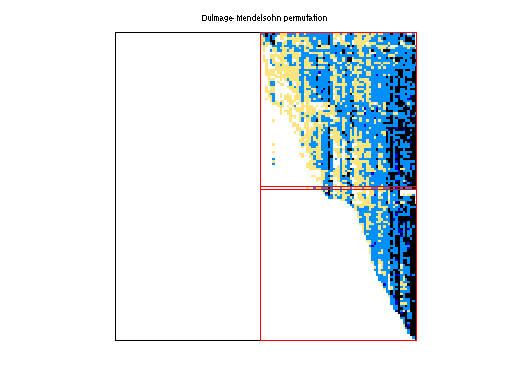

JGD_G5/IG5-16 dmperm of JGD_G5/IG5-16

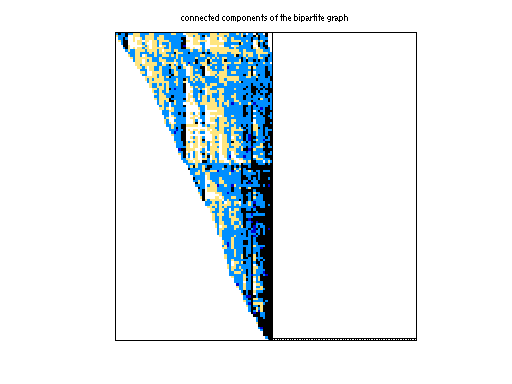

scc of JGD_G5/IG5-16

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: JGD_G5
  • Click here for a description of the JGD_G5 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 1 MB. Use UFget(1975) or UFget('JGD_G5/IG5-16') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 1 MB.

    Matrix properties
    number of rows18,846
    number of columns18,485
    nonzeros588,326
    structural full rank?no
    structural rank9,519
    # of blocks from dmperm2
    # strongly connected comp.8,967
    explicit zero entries0
    nonzero pattern symmetry 0%
    numeric value symmetry 0%
    typeinteger
    structurerectangular
    Cholesky candidate?no
    positive definite?no

    authorN. Thiery
    editorJ.-G. Dumas
    date2008
    kindcombinatorial problem
    2D/3D problem?no

    Notes:

    Decomposable subspaces at degree d of the invariant ring of G5, Nicolas Thiery.
    Univ. Paris Sud.

    From Jean-Guillaume Dumas' Sparse Integer Matrix Collection,
    http://ljk.imag.fr/membres/Jean-Guillaume.Dumas/simc.html

    http://www.lapcs.univ-lyon1.fr/~nthiery/LinearAlgebra/

    Linear Algebra for combinatorics

    Abstract:  Computations in algebraic combinatorics often boils down to
    sparse linear algebra over some exact field. Such computations are
    usually done in high level computer algebra systems like MuPAD or
    Maple, which are reasonnably efficient when the ground field requires
    symbolic computations. However, when the ground field is, say Q  or
    Z/pZ, the use of external specialized libraries becomes necessary. This
    document, geared toward developpers of such libraries, present a brief
    overview of my needs, which seems to be fairly typical in the
    community.

    IG5-6: 30 x 77 : rang = 30  (Iteratif: 0.01 s, Gauss: 0.01 s)
    IG5-7: 62 x 150 : rang = 62  (Iteratif: 0.02 s, Gauss: 0.01 s)
    IG5-8: 156 x 292 : rang = 154  (Iteratif: 0.08 s, Gauss: 0.01 s)
    IG5-9: 342 x 540 : rang = 308  (Iteratif: 0.46 s, Gauss: 0.02 s)
    IG5-10: 652 x 976 : rang = 527  (Iteratif: 2.1 s, Gauss: 0.07 s)
    IG5-11: 1227 x 1692 : rang = 902  (Iteratif: 7.5 s, Gauss: 0.22 s)
    IG5-12: 2296 x 2875 : rang = 1578  (Iteratif: 26 s, Gauss: 0.93 s)
    IG5-13: 3994 x 4731 : rang = 2532  (Iteratif: 80 s, Gauss: 3.35 s)
    IG5-14: 6727 x 7621 : rang = 3906  (Iteratif: 244 s, Gauss: 10.06 s)
    IG5-15: 11358 x 11987 : rang = 6146  (Iteratif: s, Gauss: 29.74 s)
    IG5-16: 18485 x 18829 : rang = 9519  (Iteratif: s, Gauss: 621.97 s)
    IG5-17: 27944 x 30131 : rang = 14060  (Iteratif: s, Gauss: 1973.8 s)

    Filename in JGD collection: G5/IG5-16.txt2


    Ordering statistics:result
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD71,335,025
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD28,416,877

    SVD-based statistics:
    norm(A)178.982
    min(svd(A))0
    cond(A)Inf
    rank(A)9,519
    sprank(A)-rank(A)0
    null space dimension8,966
    full numerical rank?no
    singular value gap1.7227e+11

    singular values (MAT file):click here
    SVD method used:s = svd (full (R)) ; where [~,R,E] = spqr (A) with droptol of zero
    status:ok

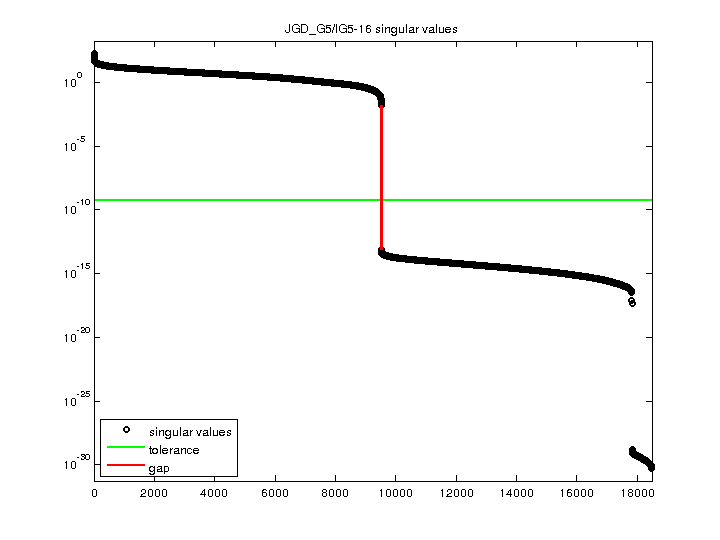

    JGD_G5/IG5-16 svd
