Matrix: GHS_psdef/crankseg_2

Description: OUTPUT4-Matrix

GHS_psdef/crankseg_2 graph
(undirected graph drawing)


GHS_psdef/crankseg_2

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_psdef
  • Click here for a description of the GHS_psdef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 82 MB. Use UFget(1258) or UFget('GHS_psdef/crankseg_2') in MATLAB.
  • download in Matrix Market format, file size: 52 MB.
  • download in Rutherford/Boeing format, file size: 40 MB.

    Matrix properties
    number of rows63,838
    number of columns63,838
    nonzeros14,148,858
    structural full rank?yes
    structural rank63,838
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?yes

    authorS. Mayer
    editorJ. Koster
    date2004
    kindstructural problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD57,159,985
    Cholesky flop count9.0e+10
    nnz(L+U), no partial pivoting, with AMD114,256,132
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD82,667,680
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD229,827,082

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

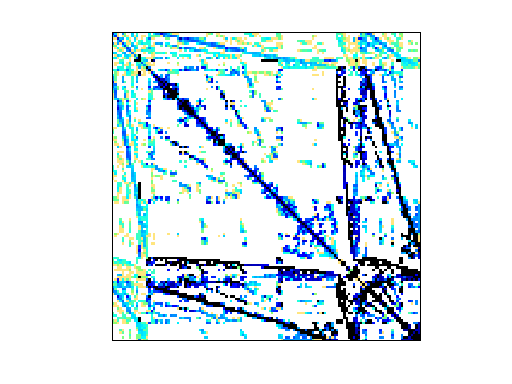

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
