Matrix: GHS_indef/olesnik0

Description: Aug. system modelling the underground of Straz pod Ralskem mine by MFE

GHS_indef/olesnik0 graph
(undirected graph drawing)

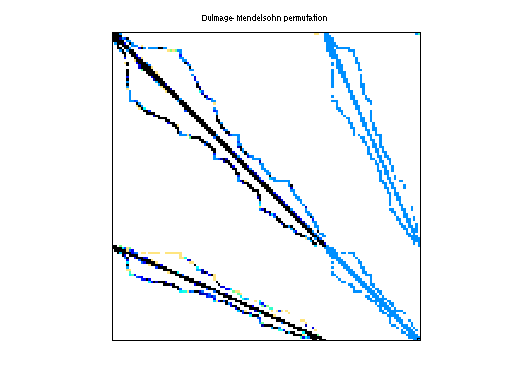

GHS_indef/olesnik0 dmperm of GHS_indef/olesnik0

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: GHS_indef
  • Click here for a description of the GHS_indef group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 4 MB. Use UFget(1244) or UFget('GHS_indef/olesnik0') in MATLAB.
  • download in Matrix Market format, file size: 2 MB.
  • download in Rutherford/Boeing format, file size: 2 MB.

    Matrix properties
    number of rows88,263
    number of columns88,263
    nonzeros744,216
    structural full rank?yes
    structural rank88,263
    # of blocks from dmperm3
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    author
    editorN. Gould, Y. Hu, J. Scott
    date2004
    kind2D/3D problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD5,554,465
    Cholesky flop count1.7e+09
    nnz(L+U), no partial pivoting, with AMD11,020,667
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD21,773,212
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD51,904,542

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.
    Matrix pictures by cspy, a MATLAB function in the CSparse package.
    Matrix graphs by Yifan Hu, AT&T Labs Visualization Group.
