Matrix: DIMACS10/vsp_p0291_seymourl_iiasa

Description: DIMACS10 set: star-mixtures/vsp_p0291_seymourl_iiasa

DIMACS10/vsp_p0291_seymourl_iiasa graph
(undirected graph drawing)


DIMACS10/vsp_p0291_seymourl_iiasa

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: DIMACS10
  • Click here for a description of the DIMACS10 group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 203 KB. Use UFget(2643) or UFget('DIMACS10/vsp_p0291_seymourl_iiasa') in MATLAB.
  • download in Matrix Market format, file size: 152 KB.
  • download in Rutherford/Boeing format, file size: 114 KB.

    Matrix properties
    number of rows10,498
    number of columns10,498
    nonzeros107,736
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorC. Schultz
    editorH. Meyerhenke
    date2011
    kindrandom unweighted graph
    2D/3D problem?no

    Notes:

    DIMACS10 star-mixtures set

    Each graph in this benchmark represents a star-like structure of
    different graphs S0 , . . . , St. Graphs S1 , . . . , St are weakly
    connected to the center S0 by random edges. The total number of edges
    between each Si and S0 was less than 3% out of the total number of
    edges in Si . The graphs are mixtures of the following structures:
    social networks, finite-element graphs, VLSI chips, peer-to-peer
    networks, and matrices from optimization solvers.

    More info can be found in the paper I. Safro, P. Sanders, C. Schulz:
    Advanced Coarsening Schemes for Graph Partitioning, SEA 2012.

    Author: Christian Schulz, uploaded on March 30, 2012.

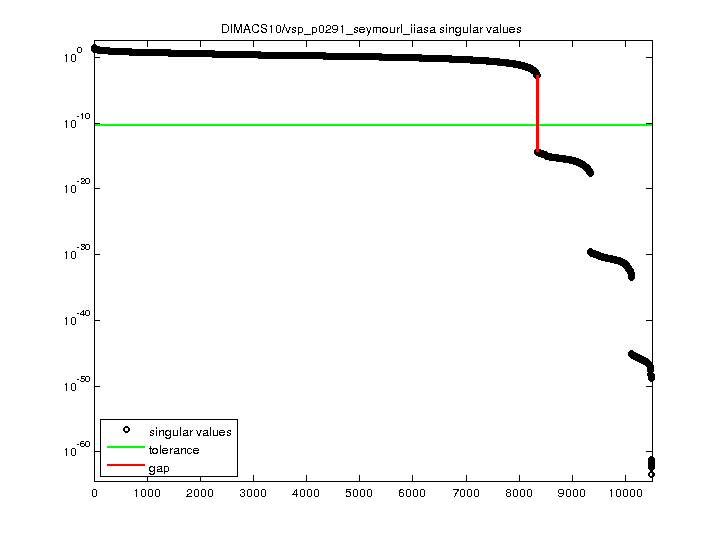

    SVD-based statistics:
    norm(A)29.4605
    min(svd(A))3.83732e-64
    cond(A)7.67737e+64
    rank(A)8,336
    null space dimension2,162
    full numerical rank?no
    singular value gap3.95618e+11

    singular values (MAT file):click here
    SVD method used:s = svd (full (A))
    status:ok

    DIMACS10/vsp_p0291_seymourl_iiasa svd

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

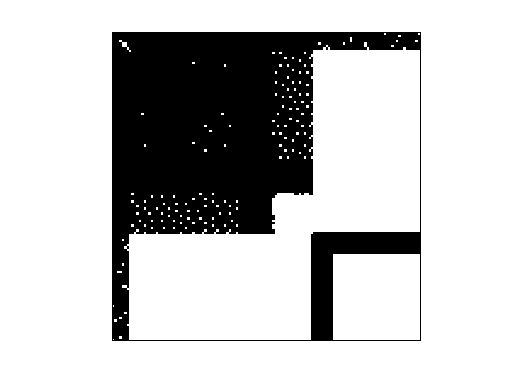

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
