Matrix: Bomhof/circuit_1

Description: Circuit DAE with BDF method & Newton. W. Bomhof, Univ. Utrecht

Bomhof/circuit_1 graph Bomhof/circuit_1 graph
(bipartite graph drawing) (graph drawing of A+A')

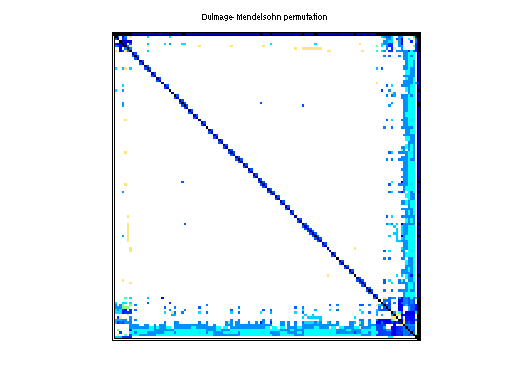

Bomhof/circuit_1 dmperm of Bomhof/circuit_1

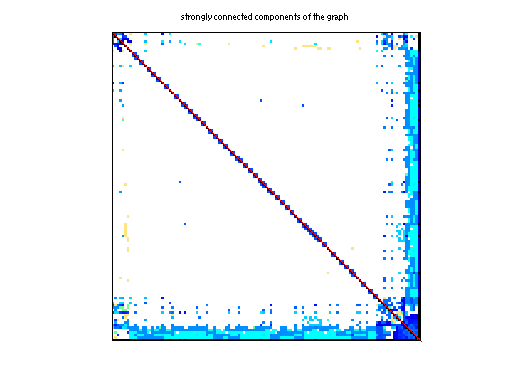

scc of Bomhof/circuit_1

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bomhof
  • Click here for a description of the Bomhof group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 190 KB. Use UFget(370) or UFget('Bomhof/circuit_1') in MATLAB.
  • download in Matrix Market format, file size: 266 KB.
  • download in Rutherford/Boeing format, file size: 208 KB.

    Matrix properties
    number of rows2,624
    number of columns2,624
    nonzeros35,823
    structural full rank?yes
    structural rank2,624
    # of blocks from dmperm60
    # strongly connected comp.6
    explicit zero entries0
    nonzero pattern symmetry 100%
    numeric value symmetry 21%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorW. Bomhof
    editorT. Davis
    date2000
    kindcircuit simulation problem
    2D/3D problem?no

    Additional fieldssize and type
    bfull 2624-by-1
    xfull 2624-by-1

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD22,513
    Cholesky flop count4.1e+05
    nnz(L+U), no partial pivoting, with AMD42,402
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD612,677
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD3,360,668

    SVD-based statistics:
    norm(A)3.15896
    min(svd(A))1.61851e-05
    cond(A)195177
    rank(A)2,624
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

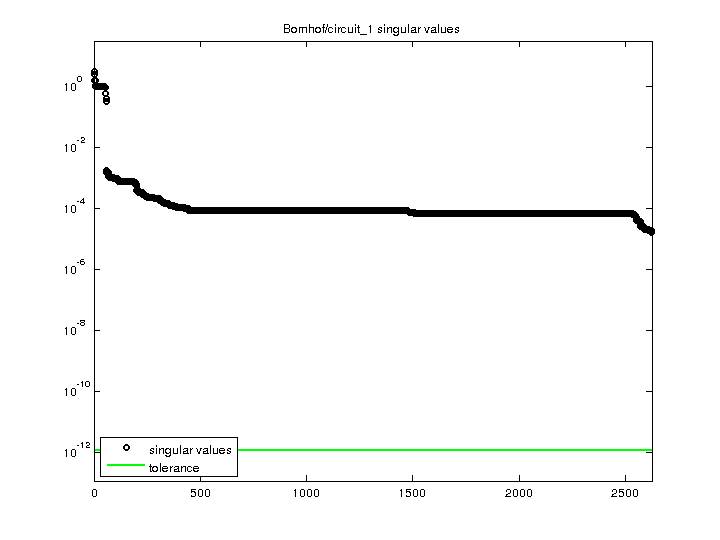

    Bomhof/circuit_1 svd

    For a description of the statistics displayed above, click here.
