Matrix: Bodendiek/CurlCurl_4

Description: Curl-Curl operator of 2nd order Maxwell's equations, A. Bodendiek

Bodendiek/CurlCurl_4 graph
(undirected graph drawing)


Bodendiek/CurlCurl_4

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bodendiek
  • Click here for a description of the Bodendiek group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 52 MB. Use UFget(2573) or UFget('Bodendiek/CurlCurl_4') in MATLAB.
  • download in Matrix Market format, file size: 70 MB.
  • download in Rutherford/Boeing format, file size: 41 MB.

    Matrix properties
    number of rows2,380,515
    number of columns2,380,515
    nonzeros26,515,867
    structural full rank?yes
    structural rank2,380,515
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typereal
    structuresymmetric
    Cholesky candidate?yes
    positive definite?no

    authorA. Bodendiek
    editorT. Davis
    date2012
    kindmodel reduction problem
    2D/3D problem?yes

    Notes:

    Curl-Curl operator of 2nd order Maxwell's equations, A. Bodendiek

    From Andre Bodendiek, Institut Computational Mathematics,
    TU Braunschweig

    The following matrix collection consists of the curl-curl-operator
    of a second-order Maxwell's equations with PEC boundary conditions,
    i.e. E x n = 0, where E and n denote the electric field strength
    and the unit outer normal of the computational domain. The
    curl-curl-operator has been discretized using the Finite Element
    Method with first-order Nedelec elements resulting in the weak
    formulation

       1/mu0 ( curl E, curl v ),

    where v resembles a test function of H(curl) and
    mu0 = 1.25 1e-9 H / mm denotes the magnetic permeability of vacuum,
    see [Hipt02].

    In general, the underlying model problem of Maxwell's equations
    results from a Coplanar Waveguide, which will be considered for
    the analysis of parasitic effects in the development of new
    semiconductors. Since the corresponding dynamical systems are often
    high-dimensional, model order reduction techniques have become an
    appealing approach for the efficient simulation and accurate analysis
    of the parasitic effects. However, different kinds of model order
    techniques require the repeated solution of high-dimensional linear
    systems of the original model problem, see [Bai02,An09]. Therefore,
    the development of efficient solvers resembles an important task
    in model order reduction.

    Each matrix CurlCurl_ consists of a different number of degrees
    of freedom, given in the following table:

     = 0:   11083
     = 1:  226451
     = 2:  806529
     = 3: 1219574
     = 4: 2380515

    References.

    @ARTICLE{Bai02,
      author = {Z. Bai},
      title = {Krylov subspace techniques for reduced-order modeling
        of large-scale dynamical systems},
      journal = {Applied Numerical Mathematics},
      year = {2002},
      volume = {43},
      pages = {9--44},
      number = {1--2}
    }

    @ARTICLE{Hipt02,
      author = {R. Hiptmair},
      title = {Finite elements in computational electromagnetism},
      journal = {Acta Numerica, Cambridge University Press},
      year = {2002},
      pages = {237-339}
    }

    @BOOK{An09,
      title = {Approximation of {L}arge-{S}cale {D}ynamical {S}ystems},
      publisher = {Society for Industrial Mathematics},
      year = {2009},
      author = {Athanasios C. Antoulas}
    }


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD6,380,637,405
    Cholesky flop count1.2e+14
    nnz(L+U), no partial pivoting, with AMD12,758,894,295
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD17,110,956,357
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD31,714,179,756

    For a description of the statistics displayed above, click here.

    Maintained by Tim Davis, last updated 12-Mar-2014.

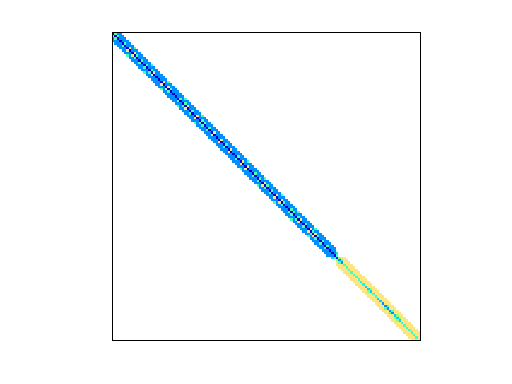

    Matrix pictures by cspy, a MATLAB function in the CSparse package.
