Matrix: Bai/rdb2048_noL

Description: REACTION-DIFFUSION BRUSSELATOR MODEL

Bai/rdb2048_noL graph
(undirected graph drawing)


Bai/rdb2048_noL

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 20 KB. Use UFget(1632) or UFget('Bai/rdb2048_noL') in MATLAB.
  • download in Matrix Market format, file size: 41 KB.
  • download in Rutherford/Boeing format, file size: 24 KB.

    Matrix properties
    number of rows2,048
    number of columns2,048
    nonzeros12,032
    structural full rank?yes
    structural rank2,048
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 79%
    typereal
    structureunsymmetric
    Cholesky candidate?no
    positive definite?no

    authorK. Meerbergen
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1994
    kindcomputational fluid dynamics problem
    2D/3D problem?yes

    Notes:

    This matrix (Bai/rdb2048_noL) is the NEP RDB2048 matrix.  It
    differs from the Bai/rdb2048 matrix.  The Bai/rdb2048 and NEP
    RDB2048L matrices are identical.  See the notes in Bai/rdb2048 for
    more details.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD42,141
    Cholesky flop count1.8e+06
    nnz(L+U), no partial pivoting, with AMD82,234
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD76,629
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD140,021

    SVD-based statistics:
    norm(A)282.208
    min(svd(A))0.101597
    cond(A)2777.73
    rank(A)2,048
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

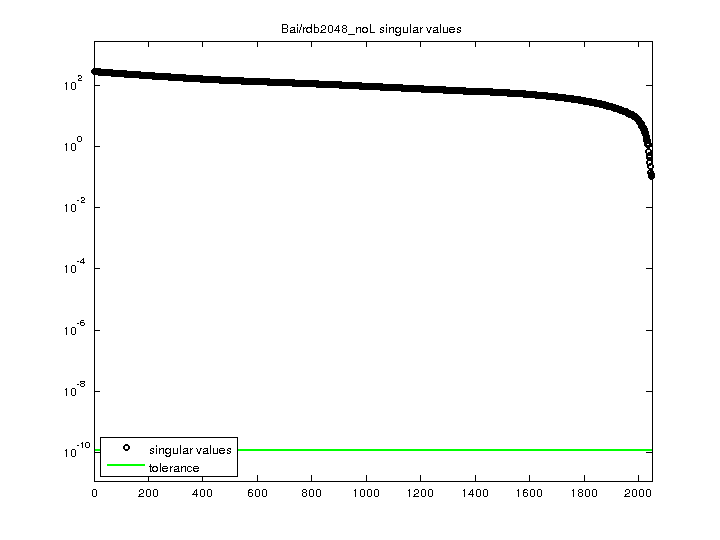

    Bai/rdb2048_noL svd

    For a description of the statistics displayed above, click here.
