Matrix: Bai/qc324

Description: MODEL H2+ IN AN ELECTROMAGNETIC FIELD, S.I. CHU

Bai/qc324 graph
(undirected graph drawing)

Bai/qc324

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: Bai
  • Click here for a description of the Bai group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 50 KB. Use UFget(327) or UFget('Bai/qc324') in MATLAB.
  • download in Matrix Market format, file size: 78 KB.
  • download in Rutherford/Boeing format, file size: 27 KB.

    Matrix properties
    number of rows324
    number of columns324
    nonzeros26,730
    structural full rank?yes
    structural rank324
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetry 0%
    typecomplex
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorS. Chu
    editorZ. Bai, D. Day, J. Demmel, J. Dongarra
    date1991
    kindelectromagnetics problem
    2D/3D problem?yes

    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD23,247
    Cholesky flop count1.8e+06
    nnz(L+U), no partial pivoting, with AMD46,170
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD28,867
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD40,389

    SVD-based statistics:
    norm(A)1.52311
    min(svd(A))3.2877e-05
    cond(A)46327.5
    rank(A)324
    sprank(A)-rank(A)0
    null space dimension0
    full numerical rank?yes

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

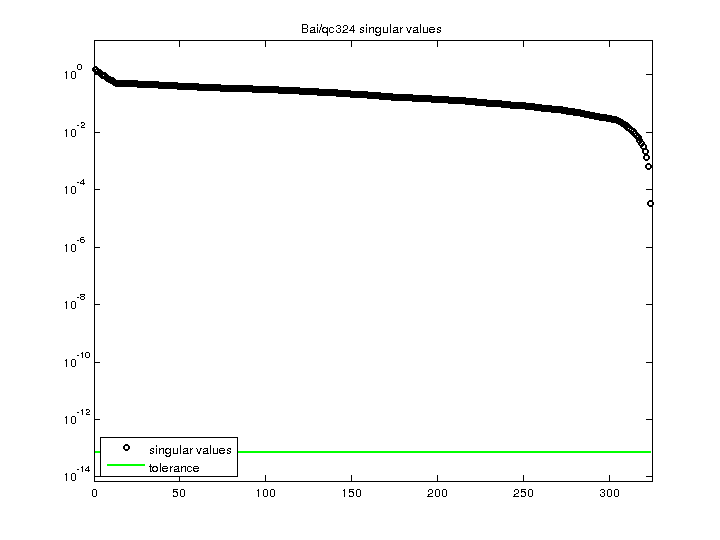

    Bai/qc324 svd

    For a description of the statistics displayed above, click here.
