Matrix properties
number of rows	2,534
number of columns	2,534
nonzeros	463,360
structural full rank?	yes
structural rank	2,534
# of blocks from dmperm	1
# strongly connected comp.	1
explicit zero entries	0
nonzero pattern symmetry	symmetric
numeric value symmetry	0%
type	complex
structure	symmetric
Cholesky candidate?	no
positive definite?	no

author	S. Chu
editor	Z. Bai, D. Day, J. Demmel, J. Dongarra
date	1991
kind	electromagnetics problem
2D/3D problem?	yes

Ordering statistics:	result
nnz(chol(P*(A+A'+s*I)*P')) with AMD	444,717
Cholesky flop count	8.0e+07
nnz(L+U), no partial pivoting, with AMD	886,900
nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD	473,112
nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD	858,144

SVD-based statistics:
norm(A)	3.31946
min(svd(A))	1.82467e-05
cond(A)	181921
rank(A)	2,534
sprank(A)-rank(A)	0
null space dimension	0
full numerical rank?	yes

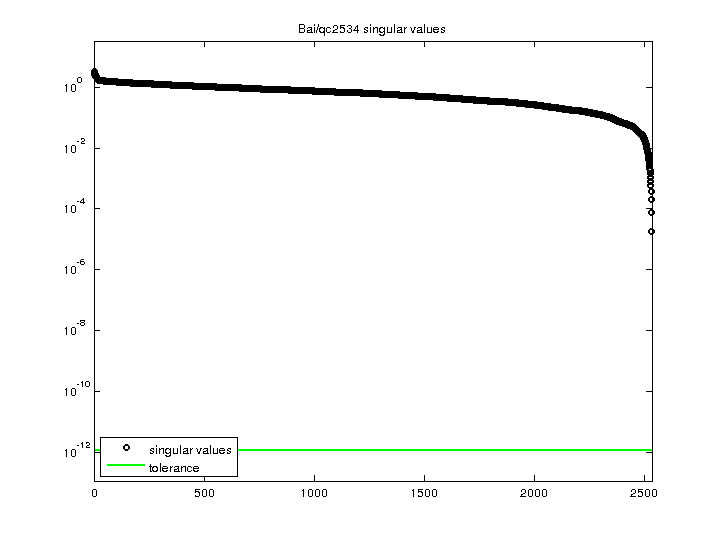

singular values (MAT file):	click here
SVD method used:	s = svd (full (A)) ;
status:	ok
