Matrix: Bai/odepa400
Description: MODEL ORDINARY DIFFERENTIAL EIGENVALUE PROBLEM
|
|
| (bipartite graph drawing) | (graph drawing of A+A') |
 |
| Matrix properties | |
| number of rows | 400 |
| number of columns | 400 |
| nonzeros | 1,201 |
| structural full rank? | yes |
| structural rank | 400 |
| # of blocks from dmperm | 1 |
| # strongly connected comp. | 1 |
| explicit zero entries | 0 |
| nonzero pattern symmetry | 100% |
| numeric value symmetry | 99% |
| type | real |
| structure | unsymmetric |
| Cholesky candidate? | no |
| positive definite? | no |
| author | G. Stewart |
| editor | Z. Bai, D. Day, J. Demmel, J. Dongarra |
| date | 1978 |
| kind | 2D/3D problem |
| 2D/3D problem? | yes |
| Ordering statistics: | result |
| nnz(chol(P*(A+A'+s*I)*P')) with AMD | 1,197 |
| Cholesky flop count | 3.6e+03 |
| nnz(L+U), no partial pivoting, with AMD | 1,994 |
| nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 1,199 |
| nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 1,991 |
| SVD-based statistics: | |
| norm(A) | 5.00489 |
| min(svd(A)) | 2.21525e-05 |
| cond(A) | 225929 |
| rank(A) | 400 |
| sprank(A)-rank(A) | 0 |
| null space dimension | 0 |
| full numerical rank? | yes |

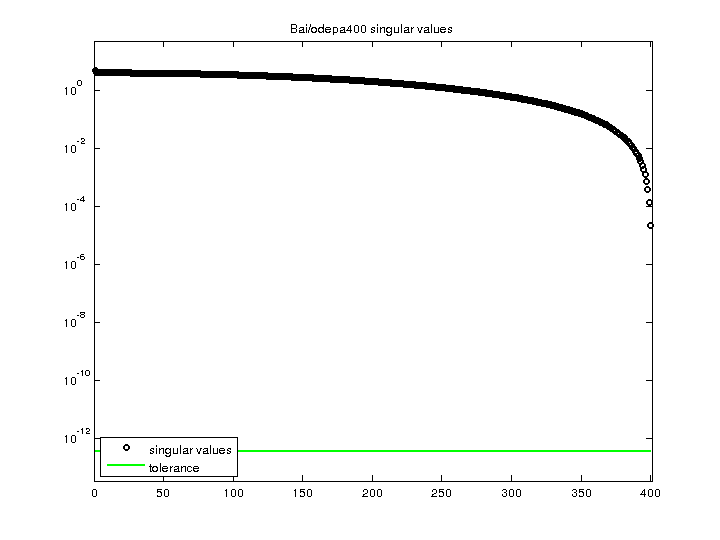

| singular values (MAT file): | click here |
| SVD method used: | s = svd (full (A)) ; |
| status: | ok |
For a description of the statistics displayed above, click here.
