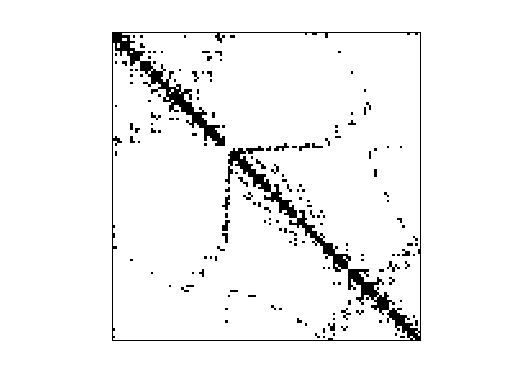

Matrix: AG-Monien/L

Description: 2D grid

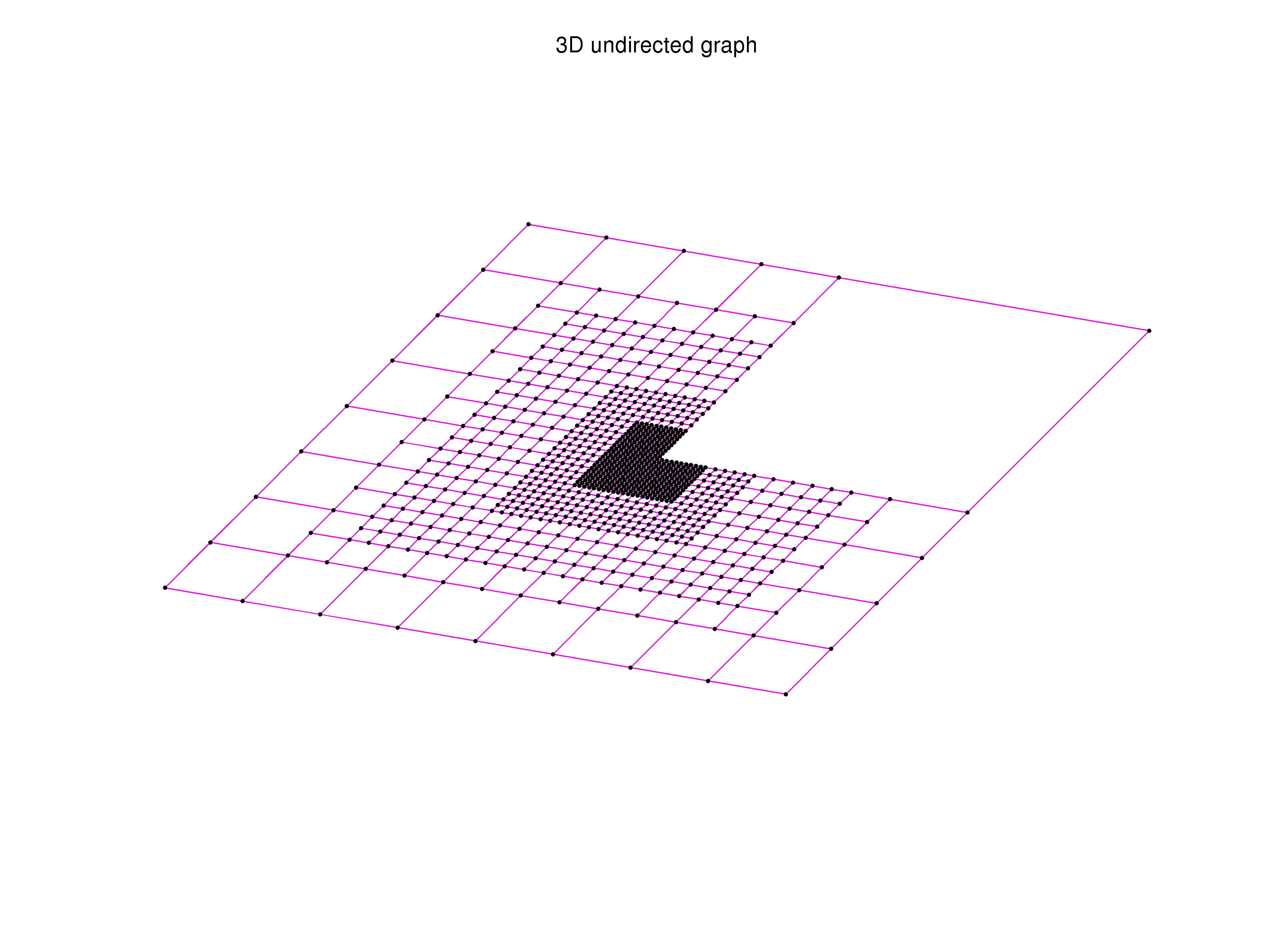

AG-Monien/L graph
(undirected graph drawing)


AG-Monien/L

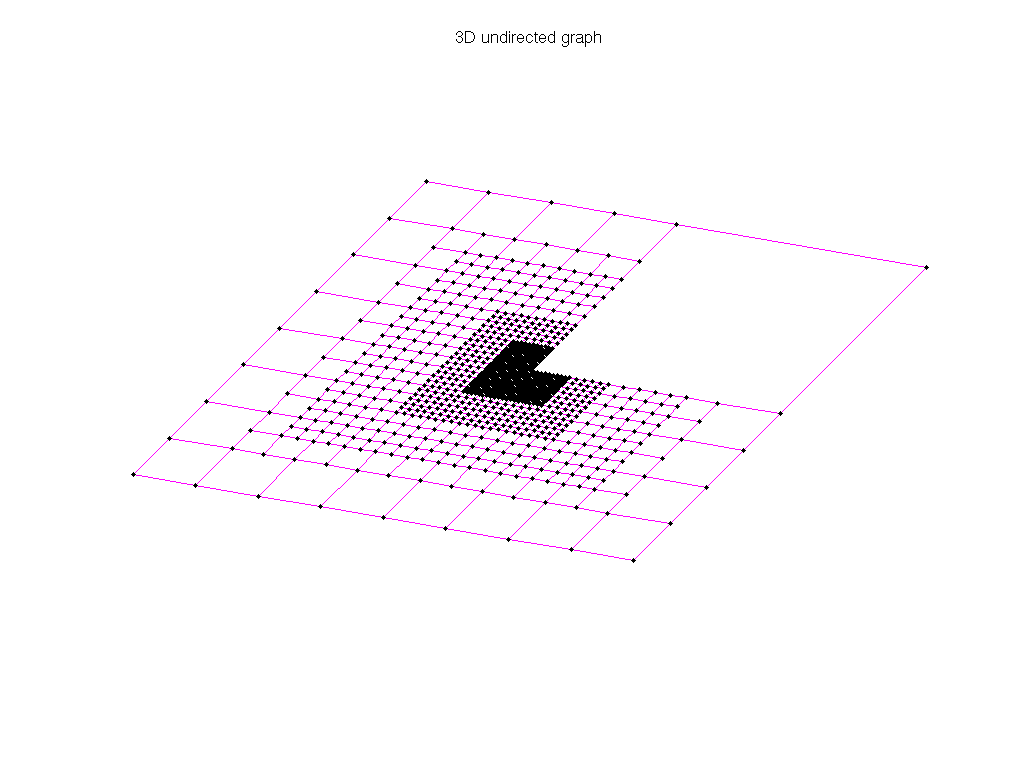

AG-Monien/L graph

  • Home page of the UF Sparse Matrix Collection
  • Matrix group: AG-Monien
  • Click here for a description of the AG-Monien group.
  • Click here for a list of all matrices
  • Click here for a list of all matrix groups
  • download as a MATLAB mat-file, file size: 10 KB. Use UFget(2429) or UFget('AG-Monien/L') in MATLAB.
  • download in Matrix Market format, file size: 7 KB.
  • download in Rutherford/Boeing format, file size: 7 KB.

    Matrix properties
    number of rows956
    number of columns956
    nonzeros3,640
    structural full rank?yes
    structural rank956
    # of blocks from dmperm1
    # strongly connected comp.1
    explicit zero entries0
    nonzero pattern symmetrysymmetric
    numeric value symmetrysymmetric
    typebinary
    structuresymmetric
    Cholesky candidate?no
    positive definite?no

    authorR. Diekmann, R. Preis
    editorR. Diekmann, R. Preis
    date1998
    kind2D/3D problem
    2D/3D problem?yes

    Additional fieldssize and type
    coordfull 956-by-3

    Notes:

    AG-Monien Graph Collection, Ralf Diekmann and Robert Preis
    http://www2.cs.uni-paderborn.de/fachbereich/AG/monien/RESEARCH/PART/graphs.html

    A collection of test graphs from various sources.  Many of the graphs
    include XY or XYZ coordinates.  This set also includes some graphs from
    the Harwell-Boeing collection, the NASA matrices, and some random matrices
    which are not included here in the AG-Monien/ group of the UF Collection.
    In addition, two graphs already appear in other groups:

       AG-Monien/big : same as Nasa/barth5, Pothen/barth5 (not included here)
       AG-Monien/cage_3_11 : same as Pajek/GD98_c (included here)

    The AG-Monien/GRID subset is not included.  It contains square grids that
    are already well-represented in the UF Collection.

    Six of the problem sets are included as sequences, each sequence being
    a single problem instance in the UF Collection:

       bfly:  10 butterfly graphs 3..12
       cage:  45 cage graphs 3..12
       cca:   10 cube-connected cycle graphs, no wrap
       ccc:   10 cube-connected cycle graphs, with wrap
       debr:  18 De Bruijn graphs
       se:    13 shuffle-exchange graphs

    Problem.aux.G{:} are the graphs in these 6 sequences.  Problem.aux.Gname{:}
    are the original names of each graph, and Problemm.aux.Gcoord{:} are the
    xy or xyz coordinates of each node, if present.


    Ordering statistics:result
    nnz(chol(P*(A+A'+s*I)*P')) with AMD10,847
    Cholesky flop count2.1e+05
    nnz(L+U), no partial pivoting, with AMD20,738
    nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD12,953
    nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD25,075

    SVD-based statistics:
    norm(A)3.94891
    min(svd(A))2.87843e-17
    cond(A)1.3719e+17
    rank(A)955
    sprank(A)-rank(A)1
    null space dimension1
    full numerical rank?no
    singular value gap3.52786e+13

    singular values (MAT file):click here
    SVD method used:s = svd (full (A)) ;
    status:ok

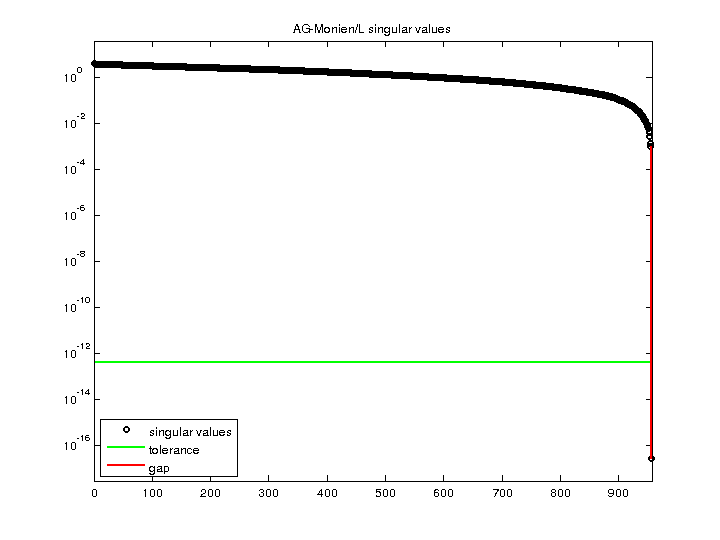

    AG-Monien/L svd

    For a description of the statistics displayed above, click here.
