**Matrix: AG-Monien/3elt**

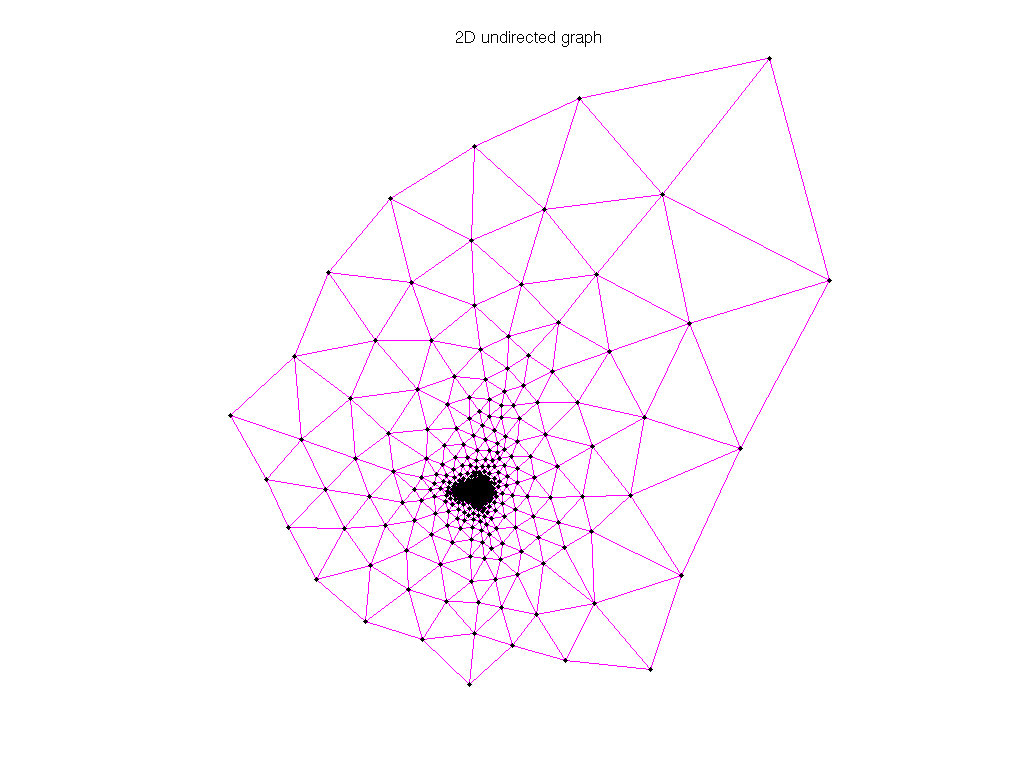

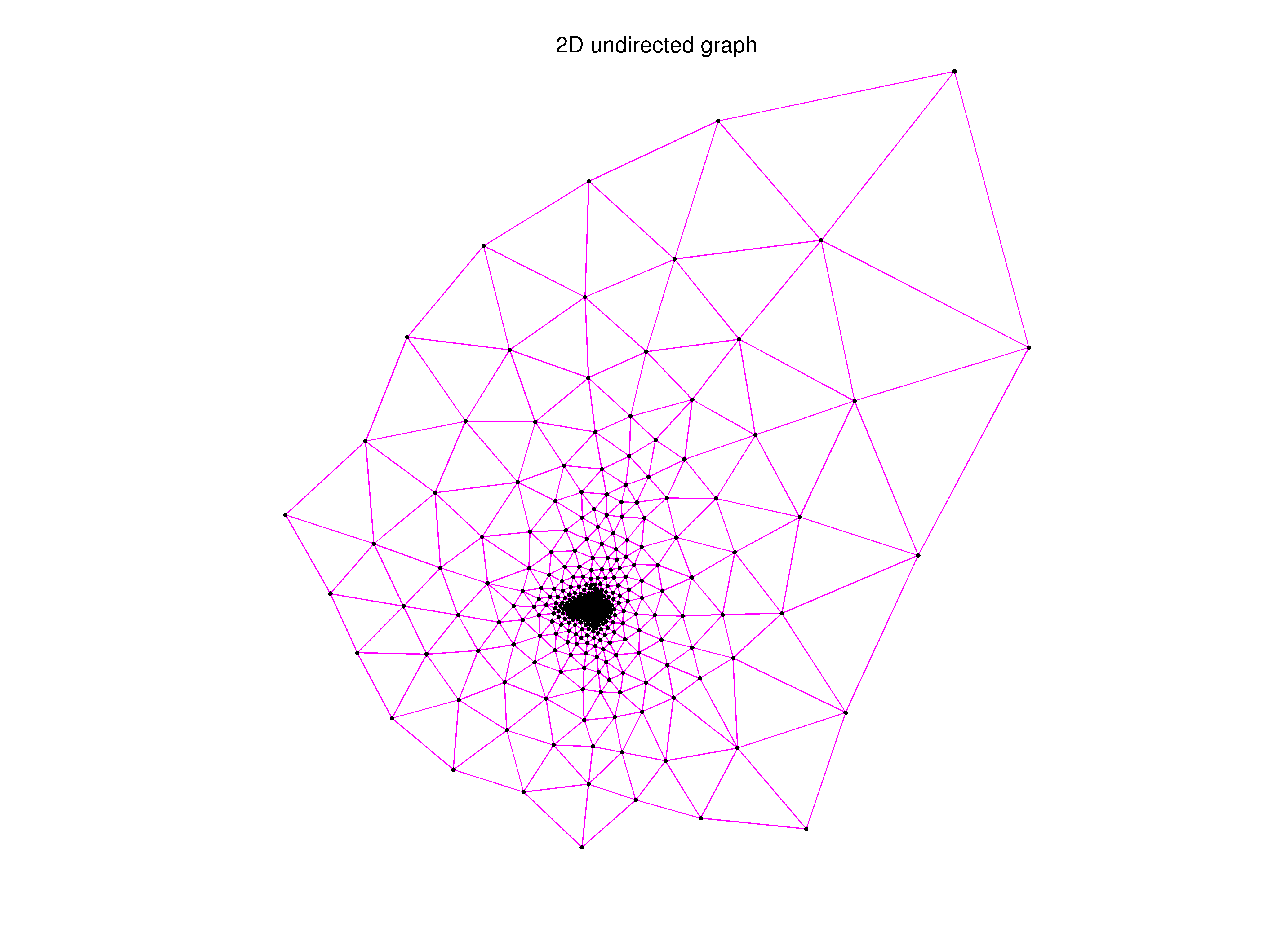

Description: 2D finite element problem

(undirected graph drawing) |

Matrix properties | |

number of rows | 4,720 |

number of columns | 4,720 |

nonzeros | 27,444 |

structural full rank? | yes |

structural rank | 4,720 |

# of blocks from dmperm | 1 |

# strongly connected comp. | 1 |

explicit zero entries | 0 |

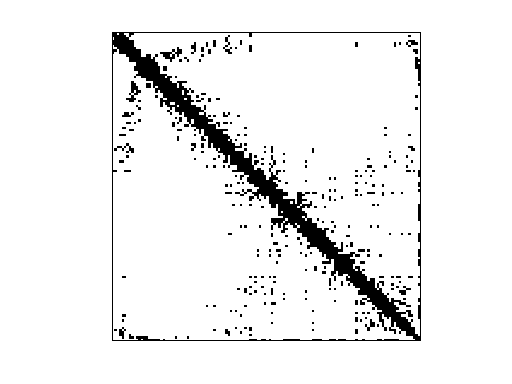

nonzero pattern symmetry | symmetric |

numeric value symmetry | symmetric |

type | binary |

structure | symmetric |

Cholesky candidate? | no |

positive definite? | no |

author | R. Diekmann, R. Preis |

editor | R. Diekmann, R. Preis |

date | 1998 |

kind | 2D/3D problem |

2D/3D problem? | yes |

Additional fields | size and type |

coord | full 4720-by-2 |

Notes:

AG-Monien Graph Collection, Ralf Diekmann and Robert Preis http://www2.cs.uni-paderborn.de/fachbereich/AG/monien/RESEARCH/PART/graphs.html A collection of test graphs from various sources. Many of the graphs include XY or XYZ coordinates. This set also includes some graphs from the Harwell-Boeing collection, the NASA matrices, and some random matrices which are not included here in the AG-Monien/ group of the UF Collection. In addition, two graphs already appear in other groups: AG-Monien/big : same as Nasa/barth5, Pothen/barth5 (not included here) AG-Monien/cage_3_11 : same as Pajek/GD98_c (included here) The AG-Monien/GRID subset is not included. It contains square grids that are already well-represented in the UF Collection. Six of the problem sets are included as sequences, each sequence being a single problem instance in the UF Collection: bfly: 10 butterfly graphs 3..12 cage: 45 cage graphs 3..12 cca: 10 cube-connected cycle graphs, no wrap ccc: 10 cube-connected cycle graphs, with wrap debr: 18 De Bruijn graphs se: 13 shuffle-exchange graphs Problem.aux.G{:} are the graphs in these 6 sequences. Problem.aux.Gname{:} are the original names of each graph, and Problemm.aux.Gcoord{:} are the xy or xyz coordinates of each node, if present.

Ordering statistics: | result |

nnz(chol(P*(A+A'+s*I)*P')) with AMD | 93,892 |

Cholesky flop count | 3.5e+06 |

nnz(L+U), no partial pivoting, with AMD | 183,064 |

nnz(V) for QR, upper bound nnz(L) for LU, with COLAMD | 126,914 |

nnz(R) for QR, upper bound nnz(U) for LU, with COLAMD | 238,378 |

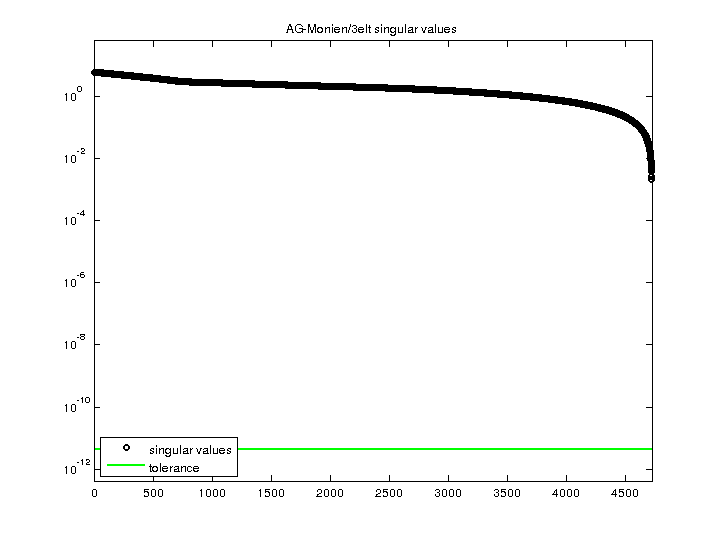

SVD-based statistics: | |

norm(A) | 6.03019 |

min(svd(A)) | 0.00212409 |

cond(A) | 2838.96 |

rank(A) | 4,720 |

sprank(A)-rank(A) | 0 |

null space dimension | 0 |

full numerical rank? | yes |

singular values (MAT file): | click here |

SVD method used: | s = svd (full (A)) ; |

status: | ok |

For a description of the statistics displayed above, click here.
